| General |
| Brand |
Gigabyte |
| Model |

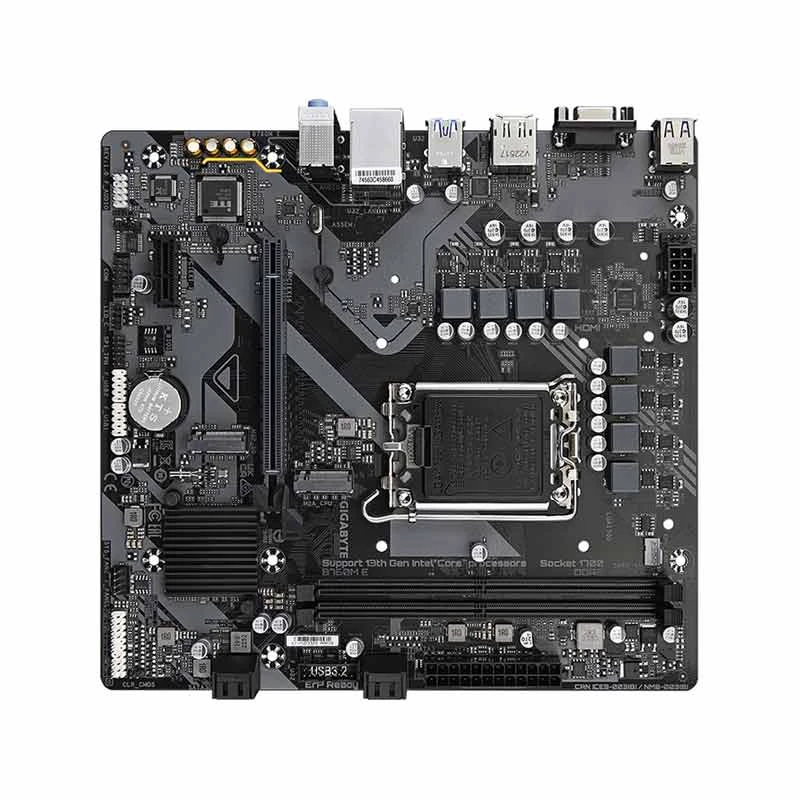

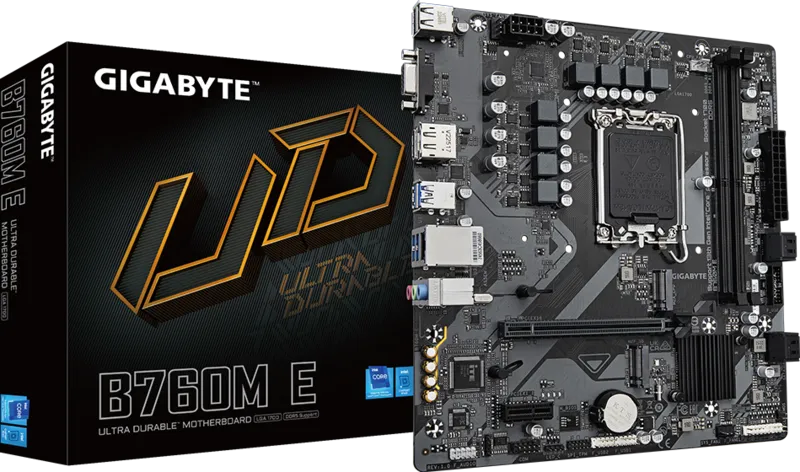

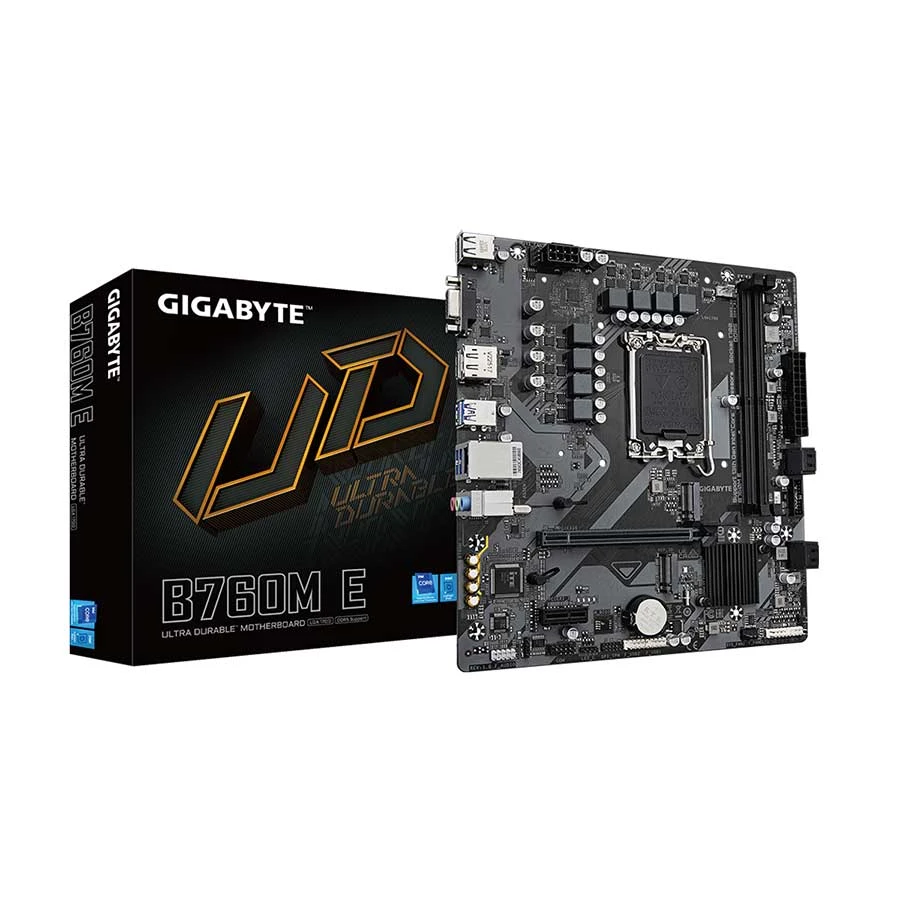

Gigabyte B760M E |
| CPU |
| Chipset Brand |
Intel |
| Chipset |
Intel B760 |
| Sockets Supported |
LGA1700 |
| Built-in Processor |
No |
| Generation |
12th/13th/14th |
| Supported CPU |
14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| Memory & Storage Support |
| Memory Type |
DDR5 |
| Memory MHz |
7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)
/ 4800/ 4000 MHz non-ECC Un-buffered DIMM. |
| Memory Channel |
Dual |
| Memory Slot |
2 |
| Memory Max. |
128 GB |
| Storage Interface |
6.0Gb/s |
| M.2/SSD Expansion Slot |
2 |
| M.2/SSD Expansion Slot Details |
2 x M.2 Slot (1 x M.2 M key type 2280 support PCIe 4.0 x4/x2 SSD, 1 x M.2 M key type 2280 support PCIe 4.0 x4/x2 SSD) |
| M.2/SSD Slot Gen |
Up to Gen 4 |
| Graphics |
| Graphics Chipset |
Intel HD Graphics Support |
| PCI Express Slot |
1 x PCI Express x16 slot supporting PCIe 4.0 and running at x16, 1 x PCI Express x1 slot supporting PCIe 3.0 and running at x1 |

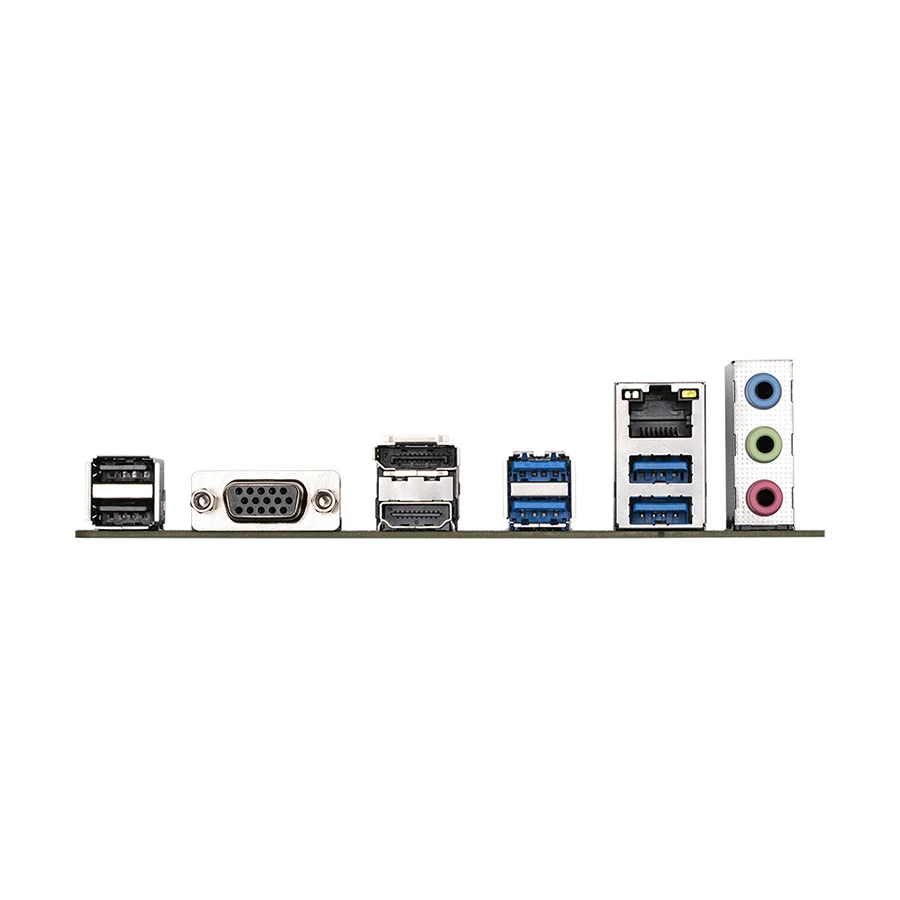

| Ports |
| USB Port |
4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0/1.1 Type-A |
| VGA Port |
1 |
| DVI Port |
No |
| HDMI Port |
1 |
| DisplayPort (DP) |
1 |
| SATA Port |
4 x SATA |
| Thunderbolt |
No |
| Network & Connectivity |
| LAN Chipset |
Realtek GbE LAN |
| LAN Speed (Mbps) |
10/100/1000Mbps |
| WiFi |
No |
| Bluetooth |
182 |
| Audio |
| Audio Chipset |
Realtek Audio CODEC |
| Audio Channel |
2/4/5.1/7.1 |
| Software |
| Supported Operating System |
Window 10, 11 |
| Technical Info |
| Back-Connect Design |
No |
| Cable Management |
Front |
| Heatsink |
No |
| RGB Support |
RGB |
| RGB Connector |
1 x RGB LED strip header |
| Approx. Power Consumption |
60W |
| Form Factor |
Micro-ATX |
| Warranty Details |
| Warranty |
3 Year |
| Additional Info |
| Country Of Origin |
Taiwan |
| Made in/ Assemble |
China |
| Feature |
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@6
0Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz, Support for GIGABYTE Control Center (GCC), Support for |
| Bios Information |
| BIOS Type |
1 x 128 Mbit flash |
| BIOS Model |
AMI UEFI BIOS |
