| General |
| Brand |
ASUS |
| Model |

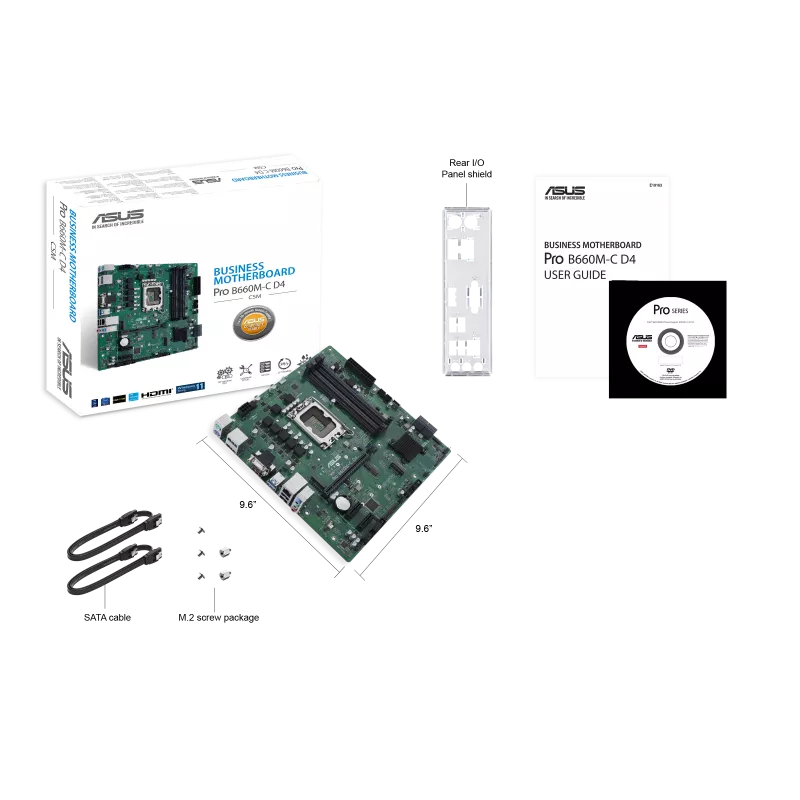

Asus Pro B660M-C D4-CSM |
| CPU |
| Chipset Brand |
AMD |
| Chipset |
Intel B660 |
| Sockets Supported |
LGA1700 |
| Built-in Processor |
No |
| Generation |
12th/13th/14th |
| Supported CPU |
Intel Core, Pentium Gold and Celeron Processors |
| Memory & Storage Support |
| Memory Type |
DDR4 |
| Memory MHz |
5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 28
00/ 2666/ 2400/ 2133 MHz |
| Memory Channel |
Dual |
| Memory Slot |
4 |
| Memory Max. |
128 GB |
| Storage Interface |
6.0Gb/s |
| M.2/SSD Expansion Slot |
2 |
| M.2/SSD Expansion Slot Details |
2 x M.2 (1 x M.2, Type 2242/2260/2280, 12th Gen processors support PCIe 4.0 x4 mode), (1 x M.2, type 2242/2260/2280, supports PCIe
4.0 x4) |
| M.2/SSD Slot Gen |
Up to Gen 4 |
| Graphics |
| Graphics Chipset |
Integrated With Processor |
| PCI Express Slot |
1 x PCIe 4.0/3.0 x16 slot (Intel 12th Gen Processors), 2 x PCIe 3.0 x1 slots (Intel B660 Chipset) |
| Multi-GPU Support |
No |
| Ports |
| USB Port |
2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| VGA Port |
1 |
| DVI Port |
No |
| HDMI Port |
1 |
| DisplayPort (DP) |
2 |
| SATA Port |
4 x SATA |
| Thunderbolt |
No |
| Network & Connectivity |
| LAN Chipset |
Intel 1Gb Ethernet |
| LAN Speed (Mbps) |
10/100 /1000Mbps |
| WiFi |
No |
| Bluetooth |
182 |
| Audio |
| Audio Chipset |
Realtek 7.1 Surround Sound High Definition Audio |
| Audio Channel |
7.1 |
| Software |
| Technical Info |
| Cable Management |
Front |
| Heatsink |
No |
| RGB Support |
No |
| RGB Sync |
Not Applicable |
| RGB Connector |
No |
| Approx. Power Consumption |
65W |
| Form Factor |
Micro-ATX |
| Warranty Details |
| Warranty |
3 Year |
| Additional Info |
| Country Of Origin |
Taiwan |
| Made in/ Assemble |
China |
| Feature |
Micro-ATX B660 business motherboard with enhanced security, reliability, manageability and serviceability |
| Bios Information |
| BIOS Type |
128Mb Flash ROM |
