| General |
| Brand |
Gigabyte |
| Model |

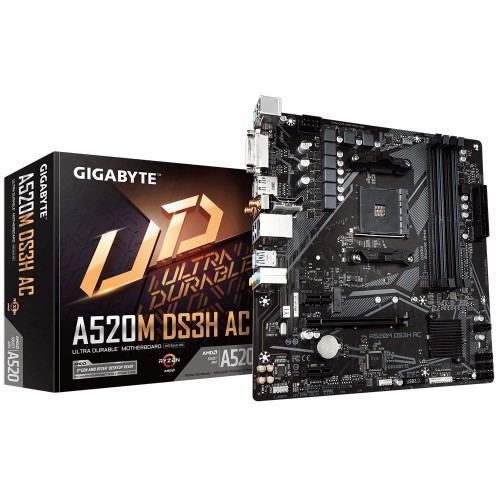

Gigabyte A520M DS3H AC (Wi-Fi 5) |
| CPU |
| Chipset Brand |
AMD |
| Chipset |
AMD A520 |
| Sockets Supported |
AM4 |
| Built-in Processor |
No |
| Supported CPU |
AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 |
| Memory & Storage Support |
| Memory Type |
DDR4 |
| Memory MHz |
4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /
3200 / 2933 / 2667 / 2400 / 2133 MHz non-ECC Un-buffered DIMM |
| Memory Channel |
Dual |
| Memory Slot |
4 |
| Memory Max. |
128 GB |
| Storage Interface |
6.0Gb/s |
| M.2/SSD Expansion Slot |
1 |
| M.2/SSD Expansion Slot Details |
1 x M.2, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| M.2/SSD Slot Gen |
Up to Gen 3 |
| Graphics |
| Graphics Chipset |
Integrated With Processor |
| PCI Express Slot |
1 x PCI Express x16, 2 x PCI Express x1 |
| Multi-GPU Support |
No |
| Ports |
| USB Port |
4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| VGA Port |
No |
| DVI Port |
1 |
| HDMI Port |
1 |
| DisplayPort (DP) |
1 |
| SATA Port |
4 |
| Thunderbolt |
No |
| Network & Connectivity |
| WiFi Technology |
WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band |
| LAN Chipset |
Realtek GbE LAN |
| LAN Speed (Mbps) |
10 / 100 Mbps |
| WiFi |
Yes |
| Bluetooth |
Bluetooth 4.2 |
| Audio |
| Audio Chipset |
Realtek Audio CODEC |
| Audio Channel |
7.1 |
| Software |
| Supported Operating System |
Windows 10, 11 |
| Technical Info |
| Back-Connect Design |
No |
| Cable Management |
Front |
| Heatsink |
No |
| RGB Support |
RGB |
| RGB Connector |
1 x RGB LED strip header |
| Approx. Power Consumption |
60W |
| Form Factor |
Micro-ATX |
| Warranty Details |
| Warranty |
3 Year |
| Additional Info |
| Country Of Origin |
Taiwan |
| Made in/ Assemble |
China |
| Bios Information |
| BIOS Type |
1 x 128 Mbit flash |
| BIOS Model |
AMI UEFI BIOS |
