| General |
| Brand |
Value Top |
| Model |
Value Top Neo Q550 |
| Series |
Neo |
| PSU Category |
Non Modular |
| Type |
ATX |
| Physical Description |
| Form Factor |
ATX |
| Color |
Black |
| Performance & Protection |
| Efficiency |
Unmentioned |
| Efficiency Rating |
Unmentioned |
| Protection |
OPP, OVP, UVP, SCP |
| Over Voltage Protection (OVP) |
Yes |
| Over Power Protection (OPP) |
Yes |
| Over Current Protection (OCP) |
No |
| Over Temperature Protection (OTP) |
No |
| Short Circuit Protection (SCP) |
Yes |
| Under Voltage Protection (UVP) |
Yes |
| Connectors, Features & Power |
| ATX Main Connectors |
1 |
| SATA Power Connectors |
4 |
| 4-Pin Peripheral Connectors |
1 |
| Min. Power (Approx.) |
450W |
| Maximum Power |
550 Watt |
| Input AC |
230V |
| Input Voltage |
12V |
| Peak Output Capacity |
550W |
| Fan Size |
120mm |
| Lighting Effect |
No |
| Warranty Details |
| Warranty |
3 Year |
| Additional Info |
| Country Of Origin |
China |
| Made in/ Assemble |
China |
| Feature |

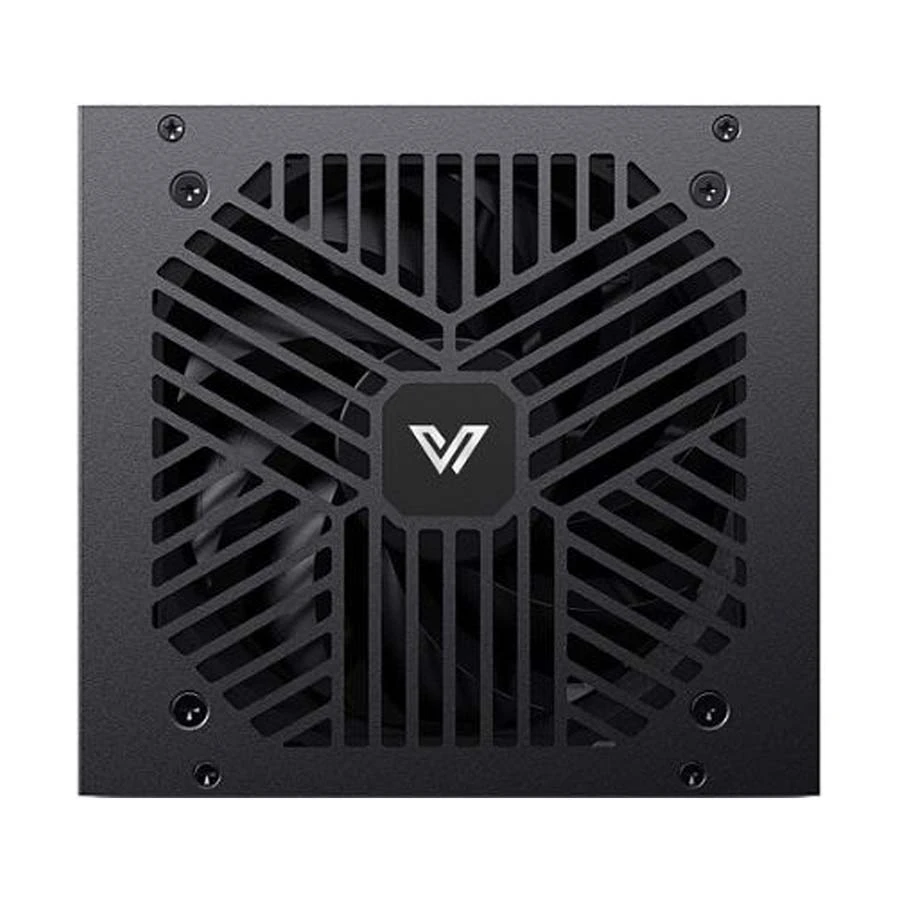

The Value Top Neo Q550 550W ATX Non-Modular Power Supply is the perfect power solution for mid-range gaming PCs and workstations.
Offering a 550W output, it provides reliable power to your system while ensuring efficient performance. With a non-modular de |
| Others Info |
Cable: IDE x2, SATA x4, (P4+4) x1, (P6+2) x2, P24 x1, Extra long flat cables, Rail: Single 12V |
| Specialty |
Unique DC to DC circuit design with Solid Capacitor |
