| Warranty Details |
| Warranty |
1 Year |
| Additional Info |
| Country Of Origin |
China |
| Others Info |
Code reading type: 1D/2D, on paper/screen. Image sensor: CMOS, Light source: White LED (lighting). Image size: 640x480Pixel, Mnimu
m resolution: 4mil, Decoding depth: 65 - 270mm, Scan mode: Manual trigger & Automatic induction, Memory: 16M, can store 26 million
characters. Charging method: TYPE-C USB, Battery; Non-removable rechargeable lithium battery, 1500mAh, Standby time: 6 months (Do
rmant state), Communication methods: 2.4G, bluetooth, Continuous working time: 15 hours. Light Source: 0-100,000Lux. Bluetooth Ver
sion: 4.2. Interface: HID, BLE, SPP. |
| Specialty |
1500mah large capacity battery, 4 hours of charging for 15 hours of continuous scanning |
| Feature |
With 16M memory, can store up to 26 million characters, Widely be used in warehouse, logistics, retail store, library, pharmacy, S
upport firmware online upgrade, to meet the different requirements, Mini size and pocket design. Easy to operate and carry. Fashio
nable and stylish, 3 in 1 connection modes, 2.4G wireless, BT4.2, USB wired, meet your various needs. |
| General |
| Brand |
SUNLUX |
| Model |

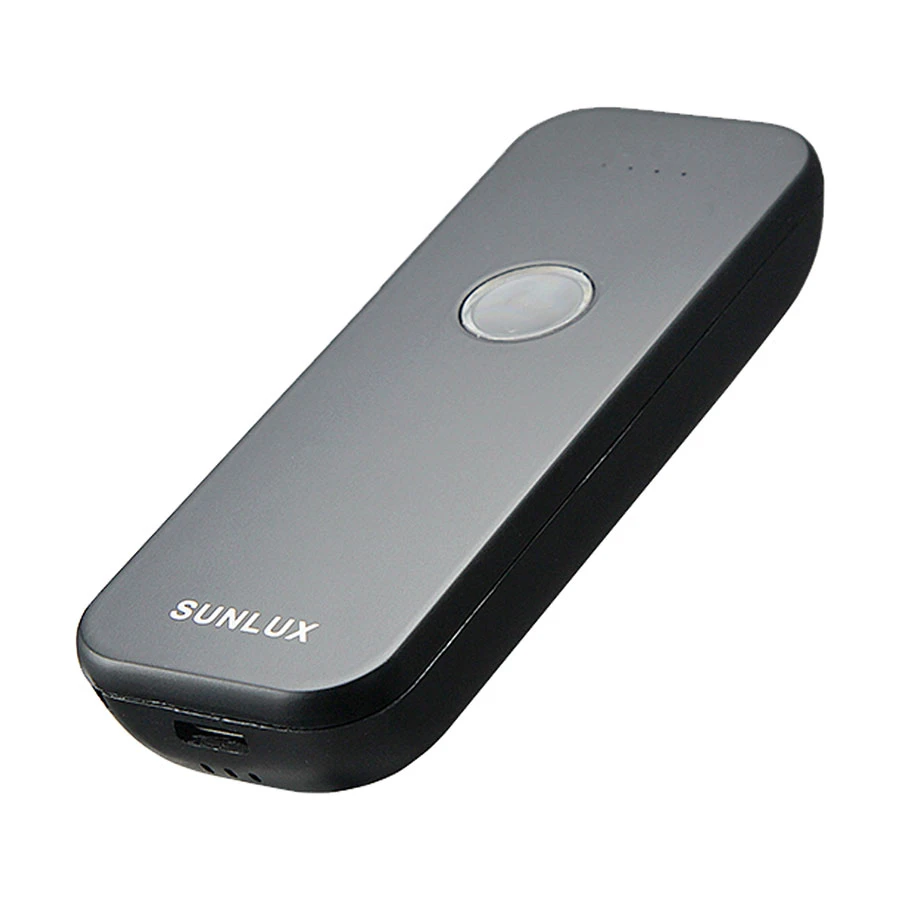

SUNLUX XL-9010 |
| Scanner Type |
Barcode Scanner |
| Performance Characteristics |
| Light Source |
White LED (lighting), XL-3090Z Red aiming light |
| Scan Angle |
360 Degree (Deflection); 65 Degree (Inclination); 60 Degree (Rotation) |
| Scanning Speed |
30fps |
| Print Contrast |
>=25% |
| Interface(s) |
USB; VCP; Bluetooth; 2.4GHz |
| Decode/Scanner Capability |
1D / 2D |
| 1D Barcode |
UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 32, Codabar(NW-7), Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Stan
dard 2 of 5(IATA), Code 11, MSI Plessey |
| 2D Barcode |
QR Code, Micro QR Code, Data Matrix, PDF 417 |
| Drop Tolerance |
1.5 Meter |
| Technical Info |
| Connectivity Mode |
Cordless |
| Supported Operating System |
Windows XP/ 7/ 8/ 10/ WinCE, Android, iOS system |
| Suitable for |
Retail Stores, Supermarkets, Restaurant, Pharmacy, Assembly Line Etc. |
| Physical Description |
| Indicators |
Ring LED Indicator Light, Buzzer |
| Cable |
No |
| Stand |
No |
| Color |
Black |
| Dimensions |
110 x 40 x 18.6mm |
| Weight (Kg) |
66 gm |
| Input Voltage |
DC 5V |
| Battery |
1500mAh |
| Operating Current |
185 ma |
| Recharging Time |
4 Hours |
