| General |
| Brand |
MSI |
| Model |

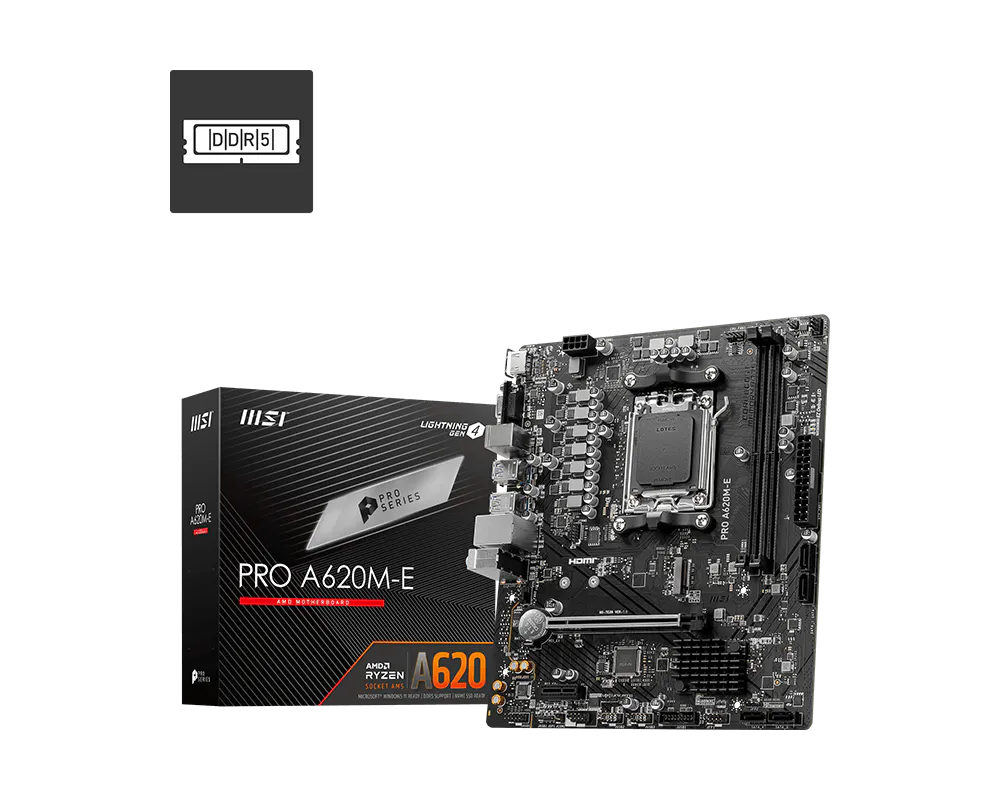

MSI PRO A620M-E |
| CPU |
| Chipset Brand |
AMD |
| Chipset |
AMD A620 |
| Sockets Supported |
AM5 |
| Built-in Processor |
No |
| Supported CPU |
AMD Ryzen 8000/ 7000 Series Desktop Processors |
| Memory & Storage Support |
| Memory Type |
DDR5 |
| Memory MHz |
6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Memory Channel |
Dual |
| Memory Slot |
2 |
| Memory Max. |
128 GB |
| Storage Interface |
6.0Gb/s |
| M.2/SSD Expansion Slot |
1 |
| M.2/SSD Expansion Slot Details |
1 x M.2 (1 x M.2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices) |
| M.2/SSD Slot Gen |
Up to Gen 4 |
| Graphics |
| Graphics Chipset |
Integrated With Processor |
| PCI Express Slot |
1 x PCI-E x 16, 1 x PCI-E x 1 (PCI_E1 Gen PCIe 4.0 supports up to x16, PCI_E2 Gen PCIe 3.0 supports up to x1) |
| Multi-GPU Support |
No |
| Ports |
| USB Port |
2 x USB 2.0, 4 x USB 3.2 Gen 1 Type A |
| VGA Port |
1 |
| DVI Port |
No |
| HDMI Port |
1 |
| DisplayPort (DP) |
No |
| SATA Port |
4 x SATA |
| Thunderbolt |
No |
| Network & Connectivity |
| WiFi Technology |
No |
| LAN Chipset |
Realtek RTL8111H |
| LAN Speed (Mbps) |
10/100/1000Mbps |
| WiFi |
No |
| Bluetooth |
No |
| Audio |
| Audio Chipset |
Realtek ALC897 Codec |
| Audio Channel |
7.1 |
| Software |
| Supported Operating System |
Windows 11, Windows 10 |
| Technical Info |
| Back-Connect Design |
No |
| Cable Management |
Front |
| Heatsink |
No |
| RGB Support |
RGB |
| RGB Connector |
1 x RGB LED connector (JRGB) |
| Approx. Power Consumption |
60W |
| Form Factor |
Micro-ATX |
| Warranty Details |
| Additional Info |
| Bios Information |
