| General |
| Brand |
MERCUSYS |
| Model |

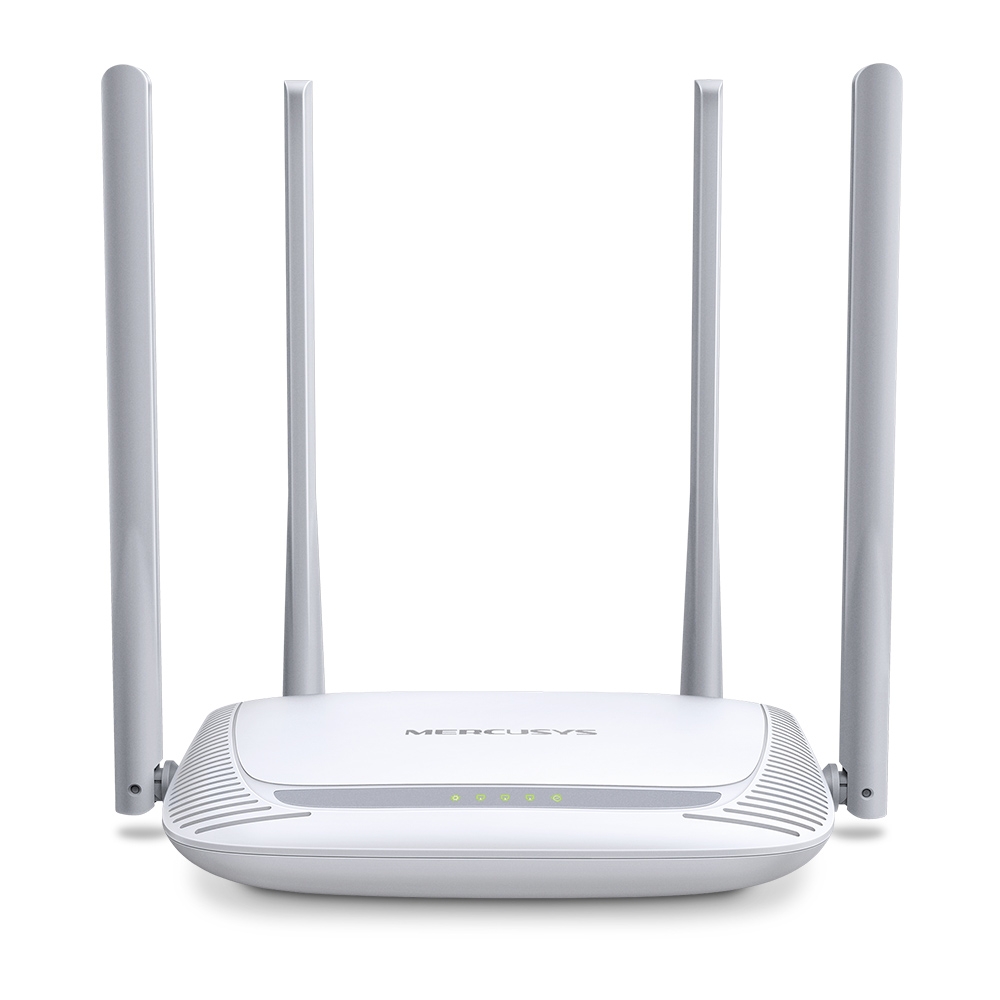

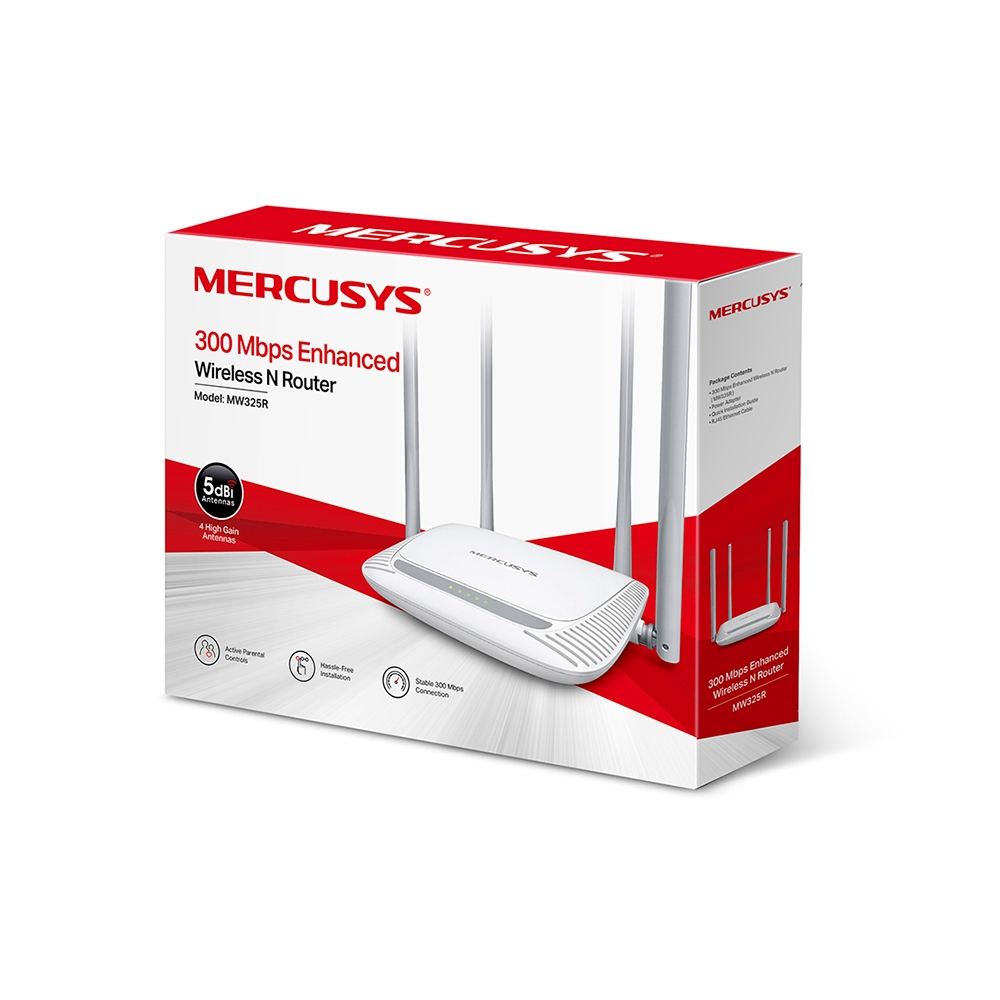

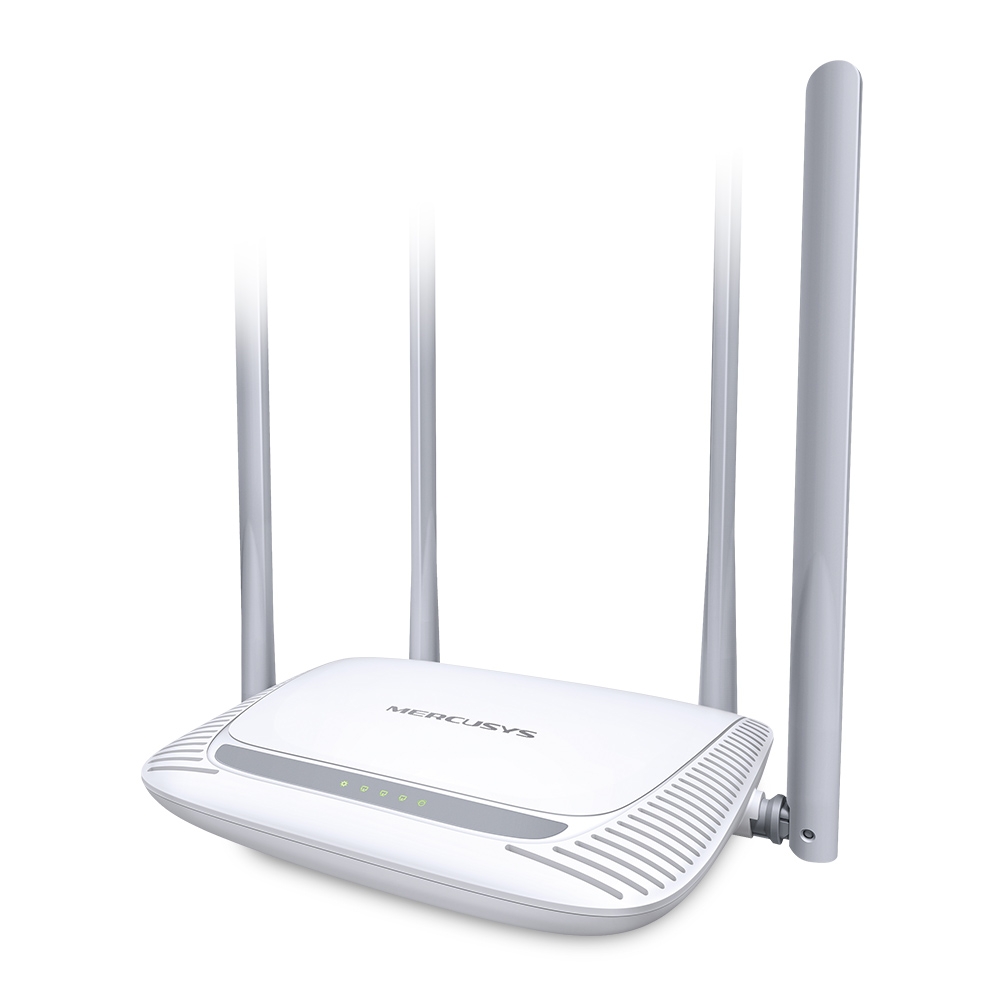

Mercusys MW325R |
| Router Type |
Wireless & Ethernet |
| Physical Description |
| Power |
5V - 0.6A |
| Button |
Reset button |
| Color |
White |
| Hardware & Network |
| Ethernet (LAN) Standard |
10/100 |
| Data Transfer Rate (Wifi) |
300 Mbps |
| Network Standards |
100 Mbps |
| WiFi (WAN) Network Standards |
954 |
| Data Transfer Rate (LAN) |
100 Mbps |
| Interface(s) |
1 x 10/100 RJ45 WAN, 3 x 10/100 RJ45 LAN |
| Number of WAN Port |
1 |
| Number of LAN Port |
3 |
| USB Interface |
No |
| Internet Connectivity |
WAN Only |
| SIM Card |
No |
| Operation/Working Wireless Modes |
Router, Range Extender, Access Point, WISP |
| Additional Info |
| Others |
External Power Supply: 5VDC/0.6A, Button: Reset button, Frequency: 2.4 - 2.5GHz, Transmission Power: <20dBm, Wireless Functions
: Enable/Disable Wireless Radio, WDS Bridge, WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP, Management: Access control, Loca |
| Specialty |
Maximum coverage, four 5dBi antennas provide up to 500m2 of wireless coverage, Enhanced signal, high gain antennas dramatically in
crease wireless signal strength, size and stability, 300Mbps wireless speed, ideal for HD streaming, online gaming, and large |
| Country Of Origin |
China |
| Made in/ Assemble |
China |
| Security |
| Encryption Type / Security Protocols |
WPA-PSK / WPA2-PSK |
| Firewall Protocols |
IP and MAC address binding |
| VPN Support |
No |
| Built in Antivirus |
No |
| Voice Assistant |
No |
| Wireless |
| Antenna (Type & Qty) |
4 x 5dBi fixed omni directional antennas |
| WAN Type |
Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| Wi-Fi Generation |
Wi-Fi 4 |
| Band |
Single Band |
| Wi-Fi Coverage (Approximate) |
Up to 800 sq. ft. |
| 3G/4G |
No |
| Mesh Technology |
No |
| MIMO Technology |
No |
| Operating Frequency |
2.4 GHz |
| Warranty Details |
| Warranty |
1 Year |
| Warranty Condition |
Without Adapter |
