| General |
| Brand |
MERCUSYS |
| Model |
Mercusys MR39-HP |
| Router Type |
Wireless & Ethernet |
| Physical Description |
| Power |
Input: 100-240V, 50/60Hz. Output: 12V/1A. |
| Wall Mountable |
Yes |
| Button |

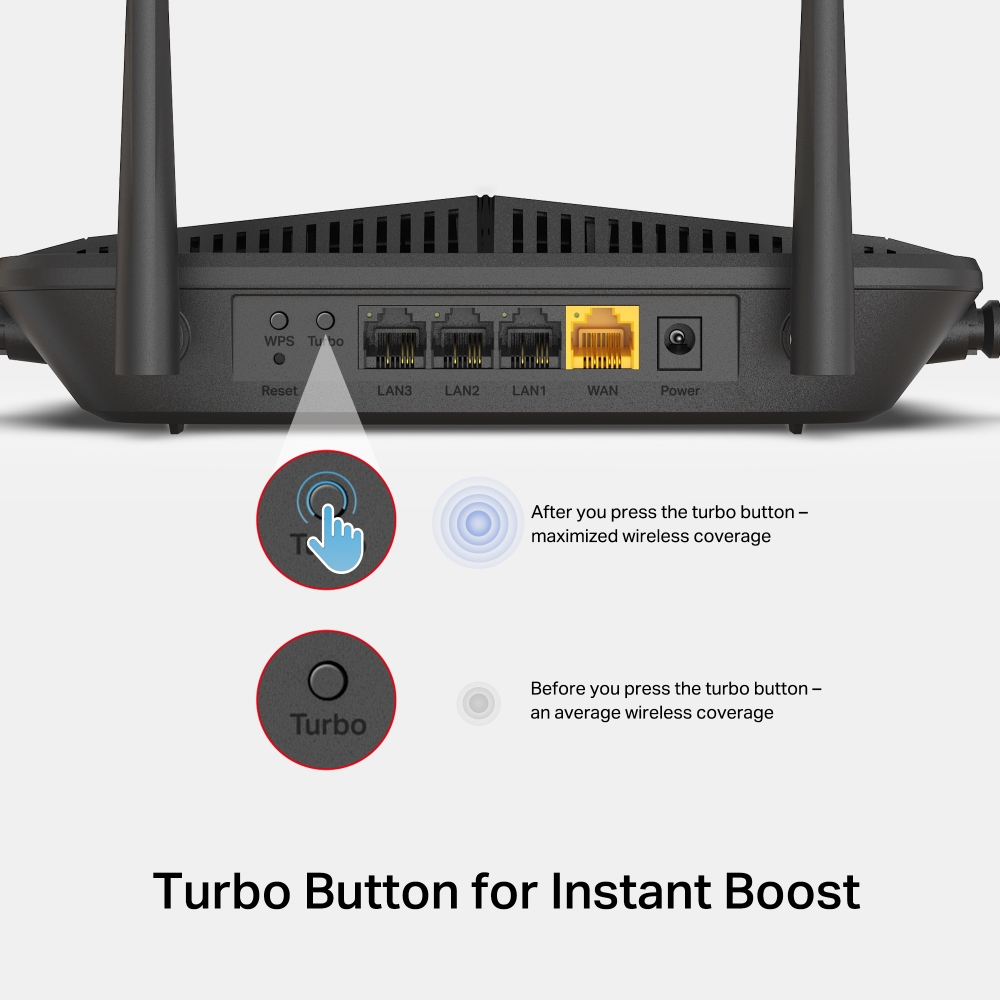

1x WPS Button, 1x Reset Button, 1x Turbo Button. |
| LED Indicators |
1x SYS, 1x Turbo, 3x LAN, 1x WAN. |
| Weight (Kg) |
773 gm |
| Color |
Black |
| Hardware & Network |
| Ethernet (LAN) Standard |
10/100 |
| Data Transfer Rate (Wifi) |
1200 Mbps |
| Network Standards |
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz |
| WiFi (WAN) Network Standards |
954 |
| Data Transfer Rate (LAN) |
100 Mbps |
| Interface(s) |
1 x 10/100 Mbps WAN Port, 3 x 10/100 Mbps LAN Ports |
| Number of WAN Port |
1 |
| Number of LAN Port |
3 |
| Internet Connectivity |
WAN Only |
| SIM Card |
No |
| Operation/Working Wireless Modes |
Router / AP / Range Extender |
| Additional Info |
| Others |
Max Channel Width: 80MHz. Max Wi-Fi Modulation 1024 QAM. Wireless Functions: Guest Network, Wireless Schedule, WPS, AP Isolation.
Installation: Desktop, Wall-mount. NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP. Protocols: IPv4, IPv6. IPTV: |
| Country Of Origin |
China |
| Made in/ Assemble |
China |
| Security |
| Encryption Type / Security Protocols |
WPA/WPA2/WPA3 |
| Firewall Protocols |
SPI Firewall |
| VPN Support |
Unmentioned |
| Built in Antivirus |
Unmentioned |
| Wireless |
| Antenna (Type & Qty) |
2 x 5G External Antennas(7dBi), 2 x 2.4G External Antennas(7dBi) |
| WAN Type |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP. |
| Wi-Fi Generation |
Wi-Fi 5 |
| Band |
Dual Band |
| Wi-Fi Coverage (Approximate) |
Unmentioned |
| Mesh Technology |
Unmentioned |
| MIMO Technology |
Unmentioned |
| Operating Frequency |
2.4 GHz, 5 GHz |
| Warranty Details |
| Warranty |
1 Year |
| Warranty Condition |
Without Adapter |
