| General |
| Brand |
MERCUSYS |
| Model |
Mercusys AC10 |
| Router Type |
Wireless & Ethernet |
| Physical Description |
| Wall Mountable |
No |
| Button |
Reset/WPS Button |
| Color |
White |
| Hardware & Network |
| Ethernet (LAN) Standard |
10/100/1000 |
| Data Transfer Rate (Wifi) |
1200 Mbps |
| Network Standards |
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| WiFi (WAN) Network Standards |
953 |
| Data Transfer Rate (LAN) |
100 Mbps |
| Storage |
5% - 90% non-condensing |
| Interface(s) |

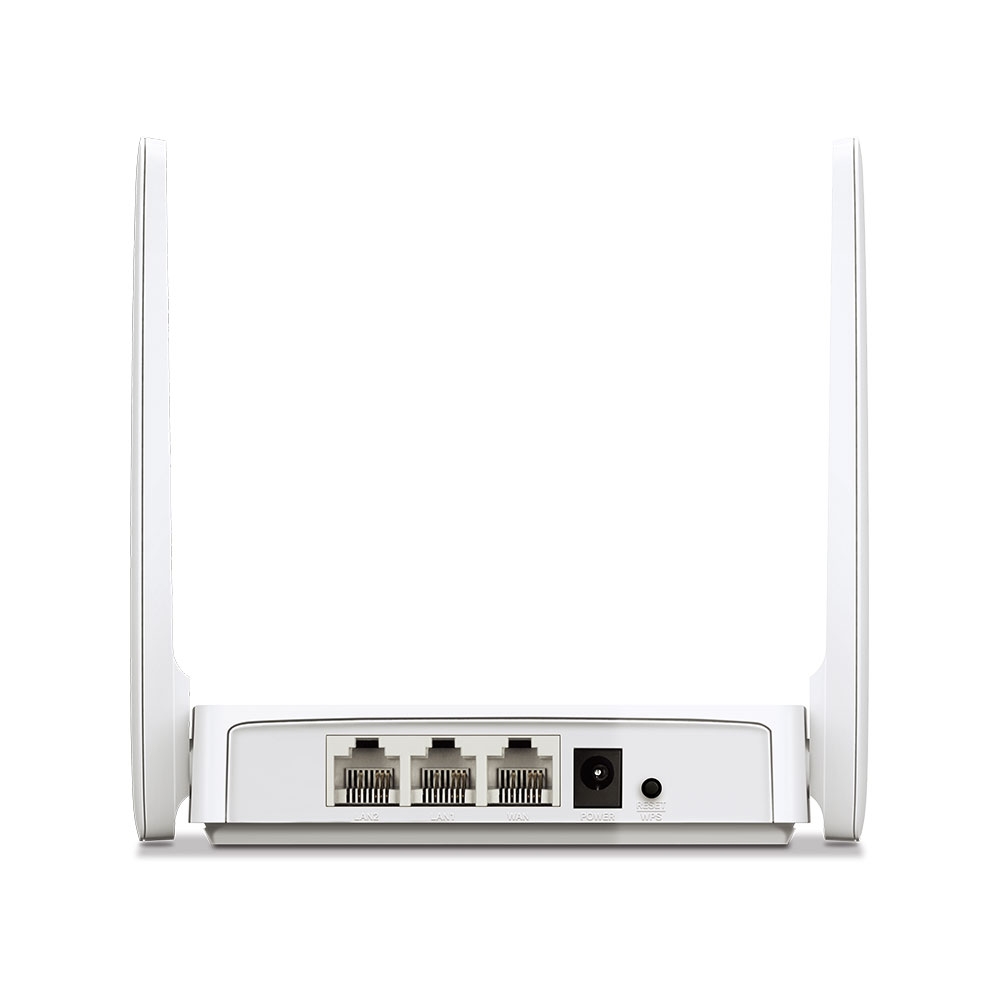

1 x 10/100 RJ45 WAN, 2 x 10/100 RJ45 LAN |
| Number of WAN Port |
1 |
| Number of LAN Port |
2 |
| USB Interface |
No |
| Internet Connectivity |
WAN Only |
| SIM Card |
No |
| Operation/Working Wireless Modes |
Router, Range Extender, Access Point |
| Additional Info |
| Specialty |
High-Speed Wi-Fi - Stream with fast and stable connections, reaching speeds up to 1167 Mbps (300 Mbps on the 2.4 GHz band and 867
Mbps on the 5 GHz band). Active Parental Controls - Protect your family by setting appropriate access policies for responsibl |
| Country Of Origin |
China |
| Made in/ Assemble |
China |
| Security |
| Firewall Protocols |
SPI Firewall, IP and MAC Address Binding |
| OS Compatibility |
Android 5.0 or later iOS 9.0 or later |
| VPN Support |
No |
| Built in Antivirus |
No |
| Voice Assistant |
No |
| Wireless |
| Antenna (Type & Qty) |
4 x 5 dBi External Fixed Omni-Directional Antennas |
| WAN Type |
Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| Wi-Fi Generation |
Wi-Fi 5 |
| Band |
Dual Band |
| Wi-Fi Coverage (Approximate) |
Up to 1500 sq. ft. |
| 3G/4G |
No |
| Mesh Technology |
Yes |
| MIMO Technology |
Yes |
| Operating Frequency |
2.4 GHz, 5 GHz |
| Warranty Details |
| Warranty |
1 Year |
| Warranty Condition |
1Year(Without Adapter) |
