| General |
| Brand |
Intel |
| Series |
Not Applicable |
| Model |

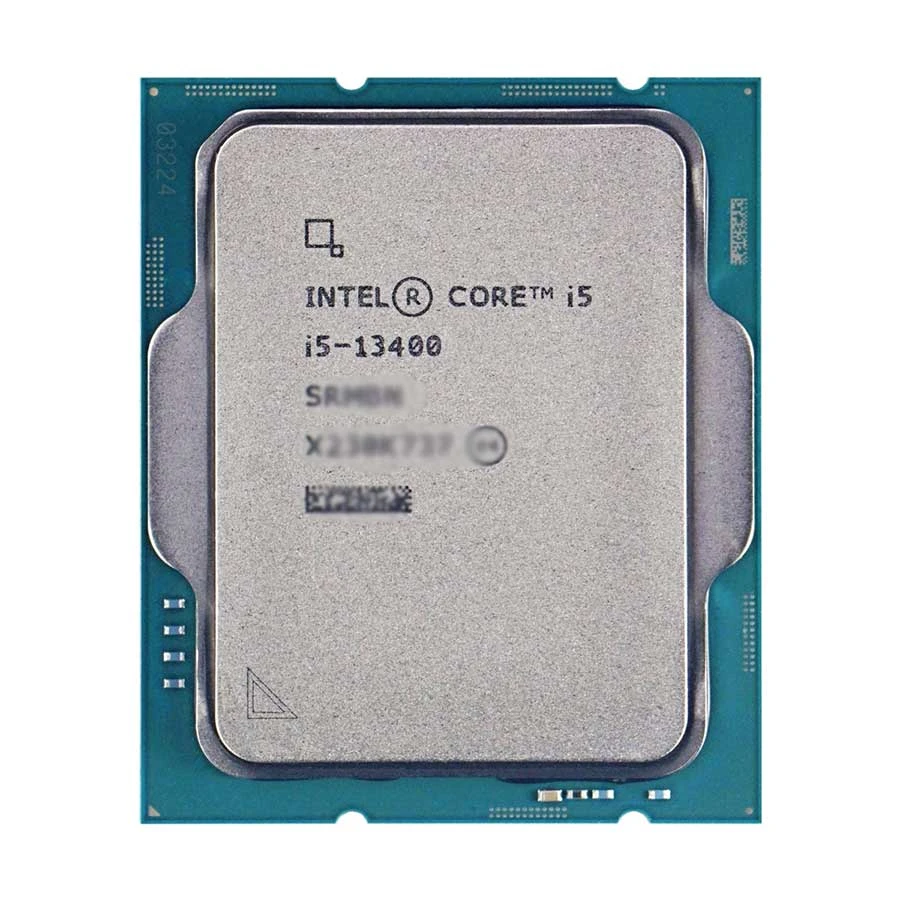

Intel Core i5 13400 |
| CPU Cooler |
Included |
| Code-Name |
Raptor Lake |
| Generation |
13th |
| Sockets Supported |
LGA1700 |
| Performance & Memory Support |
| Processor Type |
Core i5 |
| Base Frequency |
Not Applicable |
| Turbo Frequency Max |
4.60GHz |
| Core |
10 |
| Performance-Cores |
6 |
| Threads |
16 |
| CPU Cache |
20MB |
| Lithography |
Intel 7 |
| L2 Cache |
9.5MB |
| Memory Max |
128GB |
| Memory Type |
DDR4-3200MT/s, DDR5-4800MT/s |
| Memory Channel |
2 |
| ECC Memory Supported |
No |
| Graphics |
| Built-in GPU |
Yes |
| Processor Graphics |
Intel UHD Graphics 730 |
| Graphics Base Frequency |
300 MHz |
| Technical Info |
| Approx. Power Consumption |
65W |
| Compatible Products |
Chipset: Intel Z790, Intel H770, Intel B760, Intel Q670, Intel W680, Intel H610, Intel H670, Intel B660, Intel Z690. |
| Warranty Details |
| Warranty |
3 Year |
| Additional Info |
| Country Of Origin |
USA |
| Made in/ Assemble |
China |
| Others Info |
Performance-cores: 6, Efficient-cores: 4, Efficient-core Max Turbo Frequency: 3.30GHz, Performance-core Base Frequency: 2.50GHz, E
fficient-core Base Frequency: 1.80GHz, Maximum Turbo Power: 154W, Max Memory Bandwidth: 76.8 GB/s, Graphics Output: eDP 1.4b, DP 1
.4a, HDMI 2.1, Execution Units: 24, OpenCL Support: 3.0, Multi-Format Codec Engines: 1, Displays Supported: 4, PCI Express Revisio
n: 5.0 and 4.0, PCI Express Configurations: Up to 1x16+4, 2x8+4, PCI Express Lanes: 20, Max CPU Configuration: 1, Thermal Solution
Specification: PCG 2020C, Instruction Set: 64-bit, Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2. |
| Specialty |
Intel Clear Video HD Technology, Intel Quick Sync Video, Intel Gaussian & Neural Accelerator, Intel Thread Director, Intel Speed S
hift Technology, Intel Turbo Boost Technology 2.0, Intel Hyper-Threading Technology, Intel 64, Thermal Monitoring Technologies, In
tel Standard Manageability, Intel Control-Flow Enforcement Technology, Intel AES New Instructions, Secure Key, Intel OS Guard, Int
el Boot Guard, Mode-based Execute Control, Intel Virtualization Technology, Intel Virtualization Technology for Directed I/O (VT-d
), Intel VT-x with Extended Page Tables (EPT). |
