| General |
| Brand |
Intel |
| Series |
Not Applicable |
| Model |

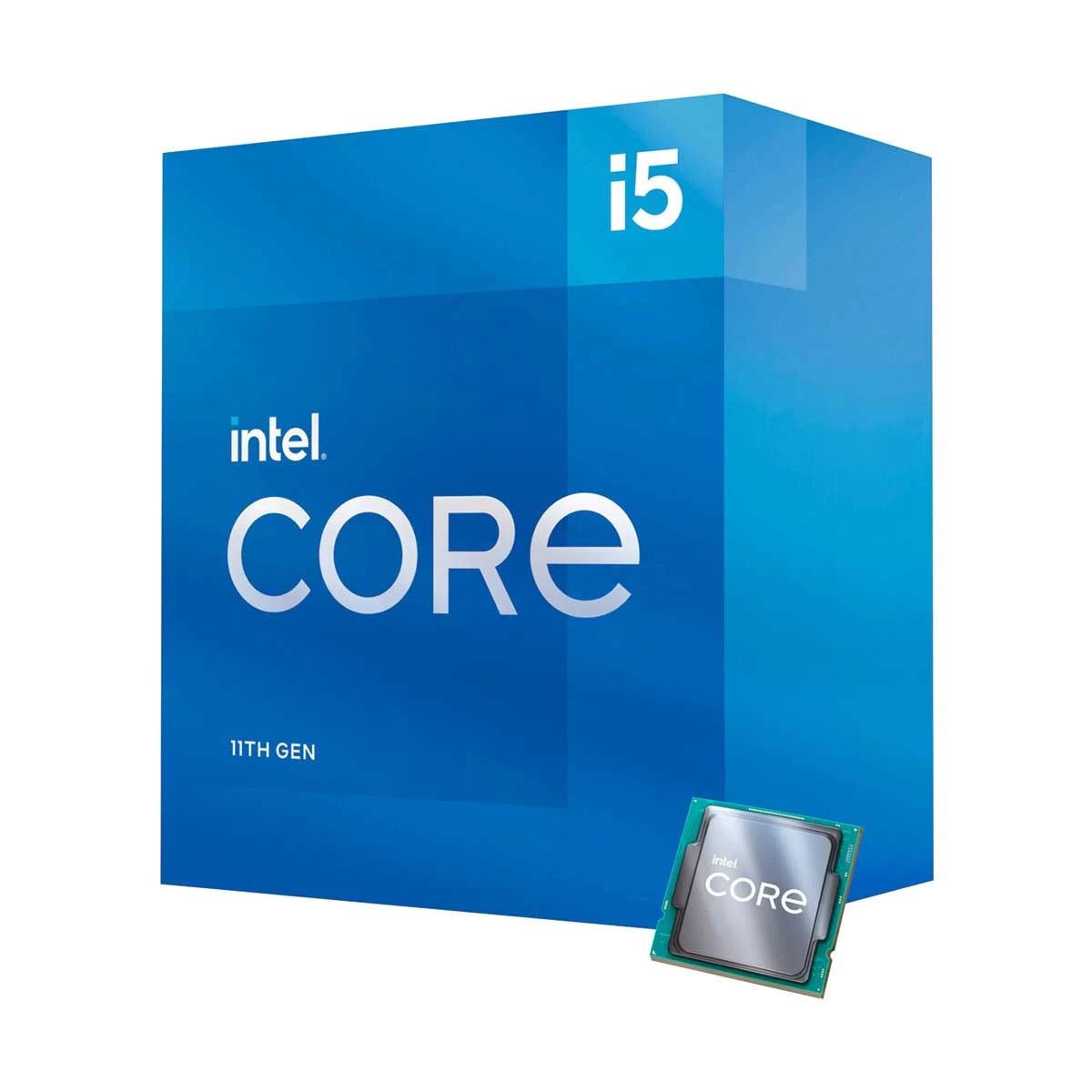

Intel Core i5 11400 |
| CPU Cooler |
Included |
| Code-Name |
Rocket Lake |
| Generation |
11th |
| Sockets Supported |
LGA1200 |
| Performance & Memory Support |
| Processor Type |
Core i5 |
| Base Frequency |
2.60GHz |
| Turbo Frequency Max |
4.40GHz |
| Core |
6 |
| Threads |
12 |
| CPU Cache |
12MB |
| Bus Speed |
8 GT/s |
| TDP |
65W |
| Lithography |
14nm |
| Memory Max |
128GB |
| Memory Type |
DDR4-3200MHz |
| Memory Channel |
2 |
| ECC Memory Supported |
No |
| Graphics |
| Built-in GPU |
Yes |
| Processor Graphics |
Intel UHD Graphics 730 |
| Graphics Base Frequency |
350 MHz |
| Technical Info |
| Approx. Power Consumption |
65W |
| Compatible Products |
Intel 500 Series Desktop Chipsets: (W580 Chipset, Q570 Chipset, Z590 Chipset, H570 Chipset, B560 Chipset, H510 Chipset), Intel 400
Series Desktop Chipsets: (Q470 Chipset, W480 Chipset, Z490 Chipset, H470 Chipset) |
| Warranty Details |
| Warranty |
3 Year |
| Warranty Condition |
3 Year (No Warranty for Fan or Cooler) |
| Additional Info |
| Country Of Origin |
USA |
| Made in/ Assemble |
China |
| Others Info |
Intel Turbo Boost Technology 2.0 Frequency: 4.40 GHz, Max Memory Bandwidth: 50 GB/s, PCI Express Revision: 4.0, PCI Express Config
urations: Up to 1x16+1x4, 2x8+1x4, 1x8+3x4, Intel Turbo Boost Technology: 2.0, Instruction Set: 64-bit, Intel AES New Instructions
: Yes, Secure Key: Yes, Intel OS Guard: Yes |
| Specialty |
Intel Gaussian & Neural Accelerator 2.0 Intel Deep Learning Boost (Intel DL Boost): Yes Intel Optane, Memory Supported :Yes Scalab
ility1S Only PCI Express Revision 4.0 PCI Express Configurations ‡ Up to 1x16+1x4, 2x8+1x4, 1x8+3x4 Max # of PCI Express Lanes 2
0 |
