| General |
| Brand |
Hikvision |
| Model |

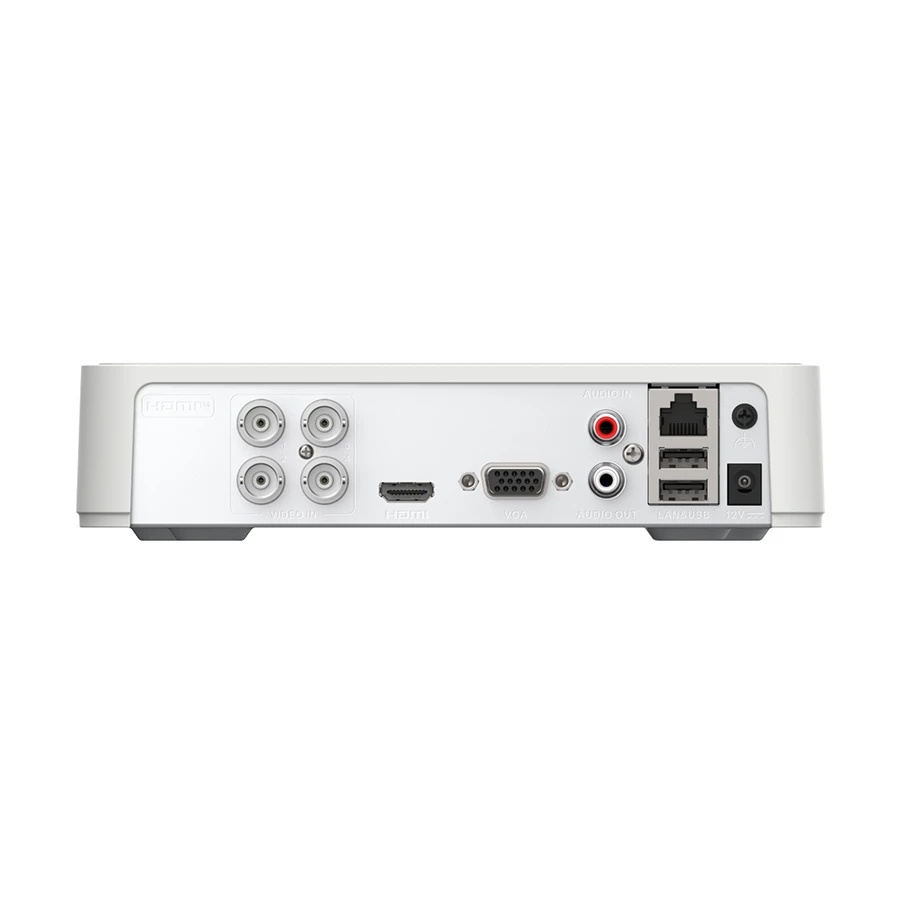

Hikvision iDS-7104HQHI-M1/T |
| Type |
DVR |
| Physical Description |
| Color |
White |
| Dimensions |
200 x 200 x 48 mm |
| Weight (Kg) |
<=1 kg |
| Power Supply |
12 VDC, 1.5 A |
| Approx. Power Consumption |
<=8 W (without HDD) |
| Recording & Network |
| Stream Type |
Video, Video & Audio |
| Dual Stream Support |
Yes |
| Synchronous Playback |
4-ch |
| Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, ISUP |
| Wi-Fi |
No |
| Wi-Fi Details |
No |
| Network Interface (RJ45) |
1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Remote Connections |
32 |
| Video & Audio |
| Number of Input Channel |
04 Channel |
| Video Compression/Format |
H.265 Pro+/ H.265 Pro/ H.265/ H.264+/ H.264 |
| Video Output (VGA) |
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz |
| Video Output (HDMI) |
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz |
| Video Recording Res |
When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K
lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Max. Video Recording Res |
1080p |
| Video Bit Rate |
32 Kbps to 6 Mbps |
| IP Video Input |
1-ch (up to 5-ch), Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps, Up to 6 MP resolution, Support H.265+/ H.265/ H.264+
/ H.264 IP cameras |
| Analog & HD-TVI Video Input |
3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps, 5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@30 fps, 4 MP(2560 x 1440)@25 fps, 2K(2
304 x 1296)@20 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps |
| Audio Input Channel (RCA) |
1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 Kohm), 4-ch via coaxial cable |
| Audio Compression |
G.711u |
| Audio Output Channel |
1-ch, RCA (Linear, 1 Kohm) |
| Two way Audio |
1-ch, RCA (2.0 Vp-p, 1 Kojm) (using the first audio input) |
| Audio Bit Rate |
64 Kbps |
| Technical Info |
| CVBS Input |
Support |
| Warranty Details |
| Warranty |
2 Year |
| Warranty Condition |
2 Year (Without Adapter) |
| Additional Info |
| Country Of Origin |
China |
| Made in/ Assemble |
China |
