| General |
| Brand |
Hikvision |
| Model |
Hikvision DS-7616NI-Q2 |
| Type |
16 Channel NVR |
| Physical Description |
| Power Supply |
12 VDC |
| Approx. Power Consumption |
<=15W (without HDD) |
| Color |
Black |

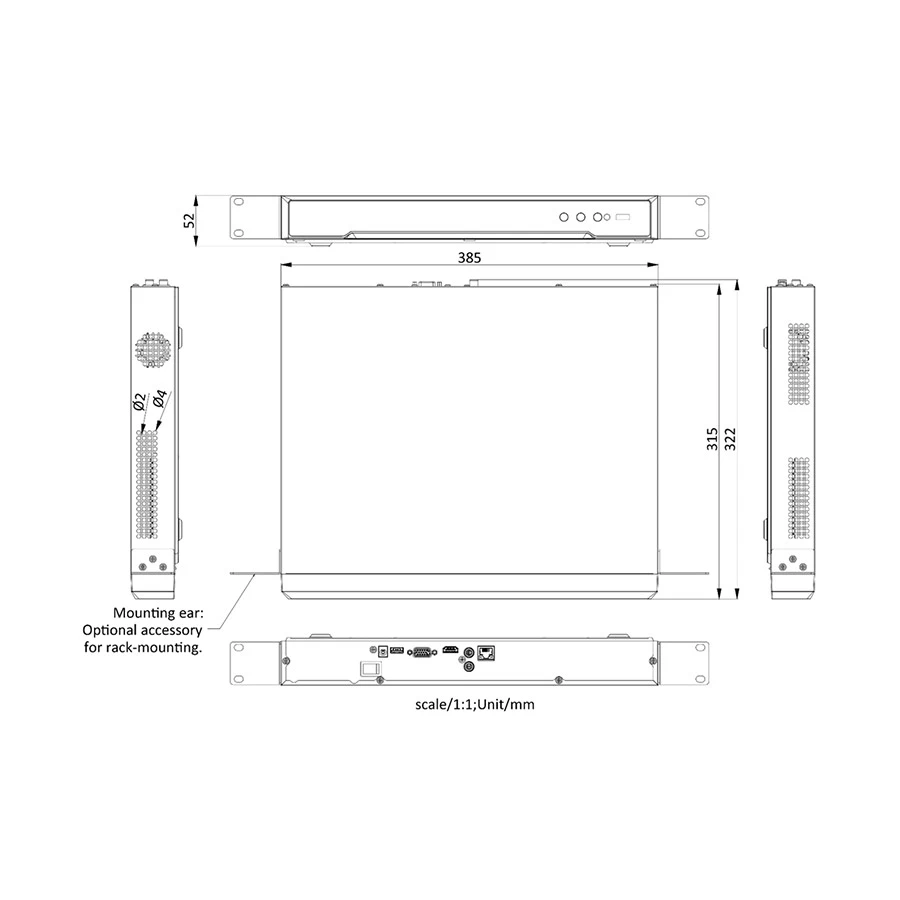

| Dimensions |
385 x 315 x 52mm |
| Weight (KG) |
<-1.80 Kg |
| Recording & Network |
| Dual Stream Support |
Unmentioned |
| Live View / Playback Resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Decoding Capability |
1-channel, 8 MP / 4-channel, 1080p |
| Synchronous Playback |
16-channel |
| Network Protocol |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| Wi-Fi |
No |
| Network Interface (RJ45) |
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| POE Interface |
No |
| Video & Audio |
| Number of Input Channel |
16 Channel |
| Video Compression/Format |
H.265+/ H.265/ H.264/ H.264+ |
| Video Output (VGA) |
1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (HDMI) |
4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (BNC) |
Video Output (BNC) |
| Video Recording Res |
8MP, 6MP, 5MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Max. Video Recording Res |
3840 x 2160 |
| IP Video Input |
16-channel, Up to 8 MP resolution |
| Audio Output Channel |
1-channel, RCA (Linear, 1K omega) |
| Technical Info |
| Number HDD Interface (SATA) |
2 SATA |
| Max HDD Support (GB,TB) |
Up to 8TB capacity for each disk |
| Max. Storage Support |
16TB |
| eSATA |
No |
| Serial Interface |
No |
| USB Port |
2 x USB2.0 |
| Outgoing Bandwidth |
80Mbps |
| Warranty Details |
| Warranty |
1 Year |
| Warranty Condition |
1 Year (Without Adapter) |
| Additional Info |
| Country Of Origin |
China |
| Made in/ Assemble |
China |
