| General |
| Brand |
Hikvision |
| Model |

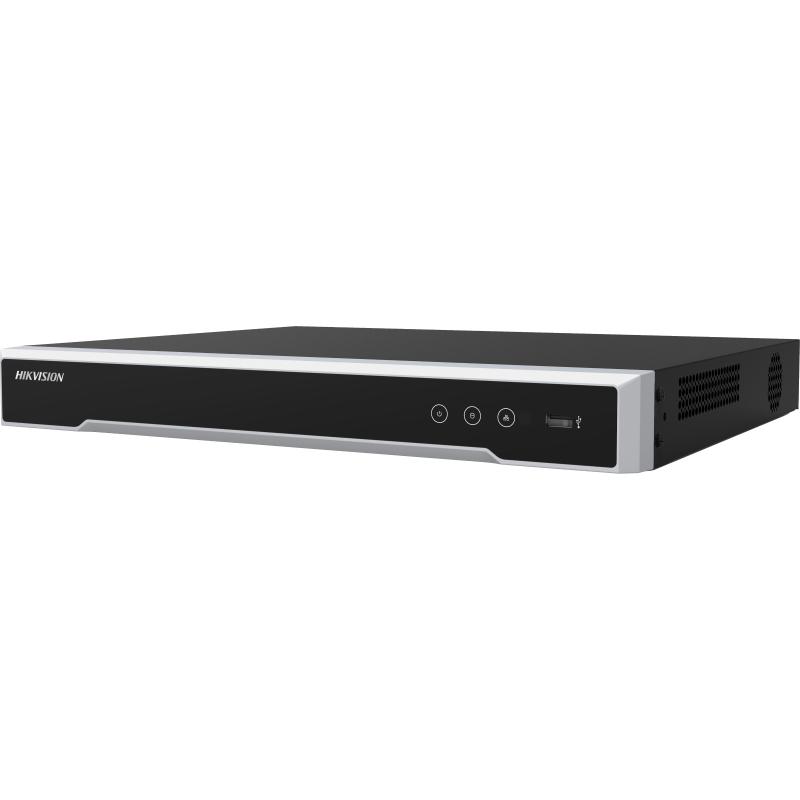

Hikvision DS-7616NI-K2 |
| Type |
16 Channel Embedded 4K NVR |
| Physical Description |
| Power Supply |
100 to 240VAC |
| Approx. Power Consumption |
≤ 15 W (without HDD) |
| Color |
Black |
| Dimensions |
385 x 315 x 52mm |
| Weight (KG) |
≤ 1 kg (without HDD) |
| Recording & Network |
| Dual Stream Support |
Unmentioned |
| Synchronous Playback |
16-ch |
| Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Wi-Fi |
No |
| Network Interface (RJ45) |
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| POE Interface |
No |
| Video & Audio |
| Number of Input Channel |
16 Channel |
| Video Compression/Format |
H.265+/H.265/H.264+/H.264 |
| Video Output (VGA) |
1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (HDMI) |
4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60
Hz |
| Video Recording Res |
8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Max. Video Recording Res |
3840 x 2160 |
| IP Video Input |
16-ch |
| Audio Compression |
G.711ulaw/G.711alaw/G.722/G.726 |
| Audio Output Channel |
1-ch, RCA (Linear, 1KΩ) |
| Technical Info |
| Number HDD Interface (SATA) |
2 SATA |
| Max HDD Support (GB,TB) |
Up to 10 TB capacity for each HDD |
| Max. Storage Support |
20TB |
| eSATA |
No |
| Serial Interface |
No |
| USB Port |
1 x USB3.0, 1 x USB2.0 |
| Incoming Bandwidth |
160 Mbps |
| Outgoing Bandwidth |
160 Mbps |
| Smart Phone Supported |
Yes |
| Warranty Details |
| Warranty |
1 Year |
| Additional Info |
| Country Of Origin |
China |
| Made in/ Assemble |
China |
