| General |
| Brand |
Hikvision |
| Model |

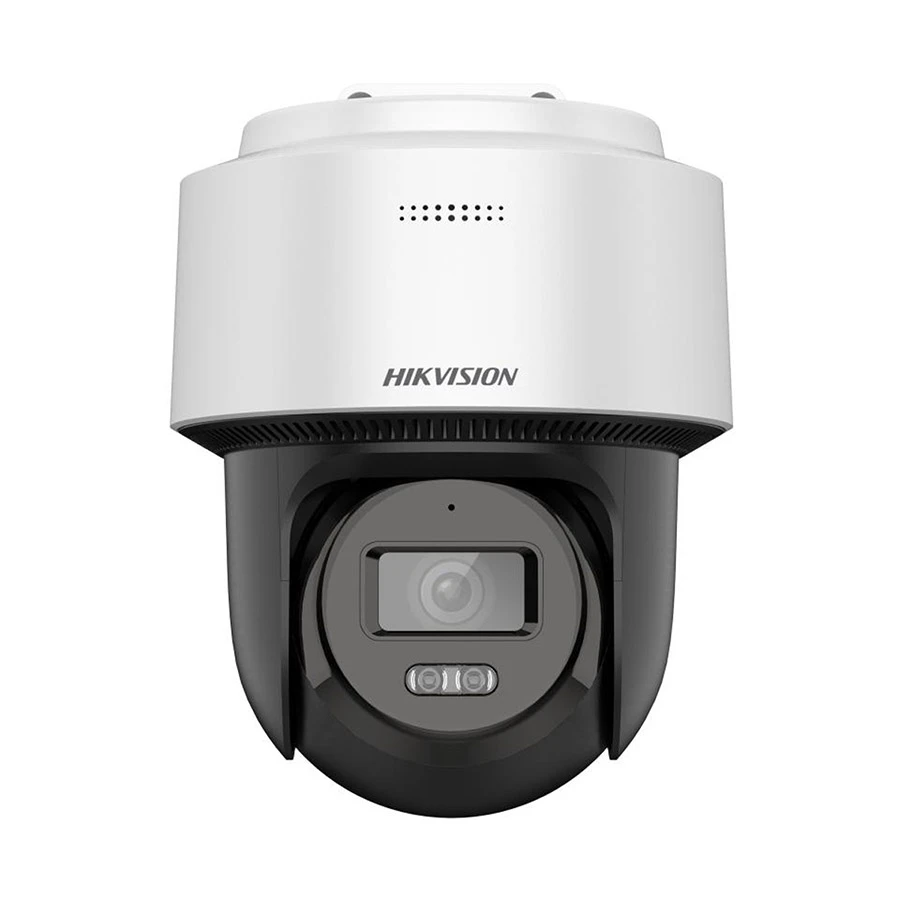

Hikvision DS-2DE2C400MWG-E |
| Usage |
Outdoor |
| Type |
IP Camera |
| Lens |
| Number of Lens |
Single Lens (Primary) |
| Lens |
2.8mm |
| Focal Length |
2.8mm |
| PTZ |
Yes |
| Viewing Angle. |
Horizontal FOV 94 Degree, Vertical FOV 49 Degree, Diagonal FOV 114 Degree |
| Physical Description |
| Form-Factor |
Dome |
| Smart Alarm |
Motion detection |
| Card Slot |
Yes |
| Storage Type |
MicroSD |
| Storage Supported |
512 GB |
| Body Material |
Plastic |
| Color |
Black & White |
| Dimensions |
163.9 x 185.8 x 131.9mm |
| Weight (gm) |
600 gm |
| Power |
12 VDC +- 25%, 0.75 A, max. 9 W, 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to
0.3 A, max. 10.5 W |
| Battery Capacity |
Not Applicable |
| Battery Backup |
No |
| Battery Backup Time |
Not Applicable |
| Approx. Power Consumption |
9W, PoE: 10.5W |
| Operating Temperature |
-10 Degree C to 40 Degree C |
| Operating Humidity |
90% or less (non-condensing) |
| Network & Connectivity |
| Sim Supported |
No |
| Sim Network Type |
Not Applicable |
| Interface(s) |
1 x RJ45 10 M/100 M self-adaptive Ethernet port |
| Wi-Fi |
No |
| Protocols |
IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour |
| Camera & Other Details |
| Number of Camera |
1 |
| Camera Type |
Fixed |
| Mega Pixels (MP) |
4.0 |
| Max. Camera Resolution |
2560 x 1440 |
| Secondary Camera Type |
Not Applicable |
| Secondary Camera Mega Pixel (MP) |
Not Applicable |
| Sensor Type. |
1/3 Inch Scan CMOS |
| Resolution |
50 Hz: 20 fps (2560 x 1440, 1920 x 1080, 1280 x 720), 60 Hz: 20 fps (2560 x 1440, 1920 x 1080, 1280 x 720) |
| Night Vision |
Yes |
| Night Vision Mode |
Color |
| Scanning System |
Progressive |
| Video Type |
H.265, H.264, MJPEG |
| Mic & Speaker |
Both Mic and Speaker |
| Audio Communication |
Two-Way Audio |
| Ingress Protection Grade |
IP66 |
| Working Distance |
30 Meter |
| Image |
| Dual-Stream |
Yes |
| Noise Reduction |
Yes |
| Wide Dynamic Range (WDR) |
Digital WDR |
| Security |
| Watermark |
Yes |
| Motion Detection |
Yes |
| Human Detection |
Yes |
| Dust Protection |
Yes |
| Water Protection |
Yes |
| Warranty Details |
| Warranty |
2 Year |
| Warranty Condition |
(Without Adapter) |
| Additional Info |
| Specialty |
Basic Event: Motion detection (support alarm triggering by specified target type (human)), video, tampering alarm, exception, Link
age: Upload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite, EMC:
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN, 50130-4: 2011 + A1: 2014), Safety CB (IEC 62368-1:
2014 + A11), CE-LVD (EN 62368-1: 2014/A11: 2017), Environment CE-RoHS (2011/65/EU), Reach (Regulation (EC) No 1907/2006), Protect
ion IP66 (IEC 60529-2013) |
| Country Of Origin |
China |
| Made in/ Assemble |
China |
