| General |
| Brand |
Hikvision |
| Model |

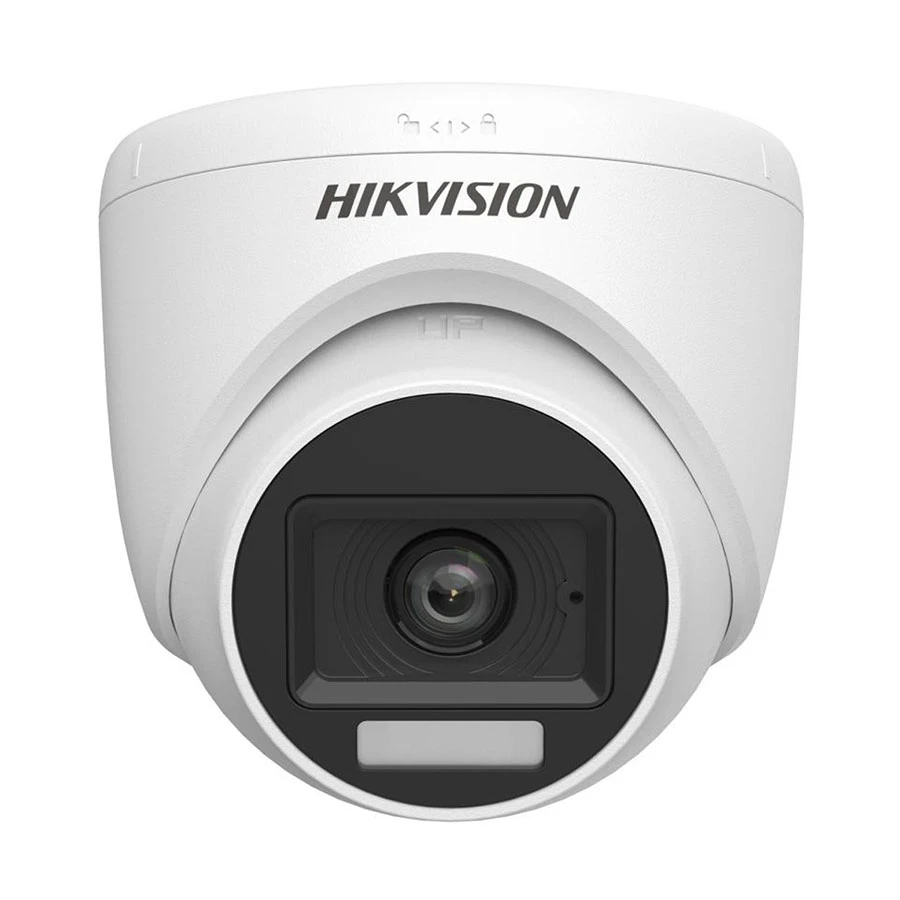

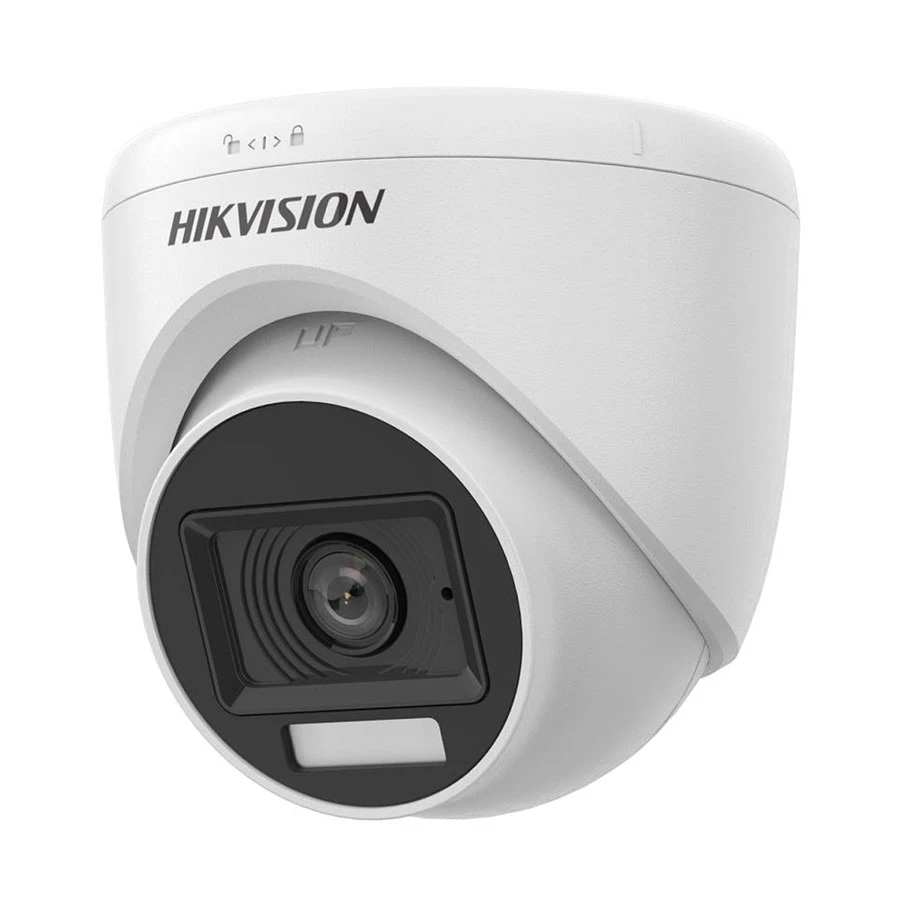

Hikvision DS-2CE76D0T-LPFS |
| Usage |
Indoor |
| Type |
CC Camera |
| Physical Description |
| Form-Factor |
Dome |
| Color |
White |
| Body Material |
Plastic |
| Dimensions |
84.6 x 85.02mm |
| Weight (gm) |
156 gm |
| Power Supply |
12 VDC + - 25% |
| Approx. Power Consumption |
Max. 3.3 W |
| Warranty Details |
| Warranty |
2 Year |
| Warranty Condition |
2 Year (Without Adapter) |
| Additional Info |
| Specialty |
Smart-Hybrid light, optimize your security with flexible lighting options |
| Country Of Origin |
China |
| Made in/ Assemble |
China |
| Feature |
High quality imaging with 2 MP, 1920 x 1080 resolution, Up to 20 m IR distance for bright night imaging, Up to 20 m white light di
stance for bright night imaging, High quality audio with audio over coaxial cable, built-in mic, One port for four switchable sign
als (TVI/AHD/CVI/CVBS. |
| Image |
| Wide Dynamic Range (WDR) |
Digital WDR |
| Capture Distance |
Unmentioned |
| Lens |
| Field of View |
Horizontal FOV: 101 Degree, vertical FOV: 56 Degree, diagonal FOV: 118 Degree |
| Lens |
2.8mm |
| Lens Mount |
M12 |
| Lens Adjustment Range |
Pan: 0 to 360 Degree, Tilt: 0 to 75 Degree, Rotation: 0 to 360 Degree |
| Camera & Other Details |
| Mega Pixels (MP) |
2.0 |
| Resolution |
1920 x 1080 |
| Max. Camera Resolution |
1920 x 1080 |
| Signal System |
PAL/NTSC |
| Shutter Time |
PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s |
| Sensor Type |
2MP CMOS Image Sensor |
| Night Vision |
Yes |
| Night Vision Mode |
Color |
| Camera Type |
Fixed |
| Video Output |
Switchable TVI/AHD/CVI/CVBS |
| Audio |
Only Mic |
| Audio Type |
Audio over coaxial cable, built-in mic |
| IR Range |
20 Meter |
