| General |
| Brand |
Hikvision |
| Model |

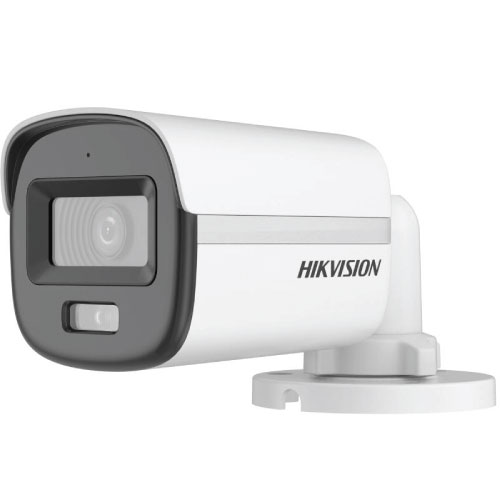

Hikvision DS-2CE10DF0T-LPFS/S |
| Usage |
Outdoor |
| Type |
Mini Bullet CC Camera |
| Physical Description |
| Form-Factor |
Mini Bullet |
| Color |
White |
| Body Material |
Front cover: Plastic, Main body: Metal |
| Dimensions |
161.1 x 68.4 x 65.2mm |
| Weight (gm) |
Approx. 395 gm |
| Power Supply |
12 VDC +/-25% |
| Approx. Power Consumption |
2.9W |
| Warranty Details |
| Warranty |
2 Year |
| Warranty Condition |
2 Year (Without Adapter) |
| Additional Info |
| Specialty |
Smart Hybrid Light technology dynamically switches from stealthy IR to clear white light upon human/vehicle detection for 24/7 ful
l-color evidence. Built-in high-quality microphone transmits audio signals over a single coaxial cable (AoC) |
| Country Of Origin |
China |
| Made in/ Assemble |
China |
| Feature |
High quality imaging with 2 MP Full HD resolution, F1.0 super aperture for exceptional ultra-low light performance, 4-in-1 switcha
ble single video port output, and dynamic image balancing technologies (DWDR/3D DNR/BLC/HLC). |
| Image |
| Wide Dynamic Range (WDR) |
Digital WDR |
| Capture Distance |
Unmentioned |
| Noise Reduction |
Yes |
| Digital Noise Reduction (DNR) |
3D DNR/ 2D DNR |
| Lens |
| Field of View |
2.8 mm: Horizontal 105°, Vertical 56°, Diagonal 126° | 3.6 mm: Horizontal 84°, Vertical 46°, Diagonal 98° |
| Lens |
2.8mm / 3.6mm Fixed Focal Lens |
| Lens Mount |
M12 |
| Lens Adjustment Range |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Camera & Other Details |
| Mega Pixels (MP) |
2.0 |
| Resolution |
1920 x 1080 |
| Max. Camera Resolution |
1920 x 1080 |
| Signal System |
PAL / NTSC |
| S/N Ratio |
62 dB |
| Shutter Time |
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Sensor Type |
2MP CMOS |
| Night Vision |
Yes |
| Night Vision Mode |
Color |
| Camera Type |
Fixed |
| Video Output |
1 HD Analog Output (Switchable TVI/AHD/CVI/CVBS) |
| Audio |
Only Mic |
| Audio Type |
High quality audio with audio over coaxial cable (AoC) & Built-in Mic |
| Weather Proof |
Yes |
| IR Range |
20 Meter |
| Privacy Mask |
4 programmable privacy masks |
| Ingress Protection Grade |
IP67 |
