| General |
| Brand |
Hikvision |
| Model |
DS-2CD1T27G3-LIU |
| Usage |
Outdoor |
| Type |

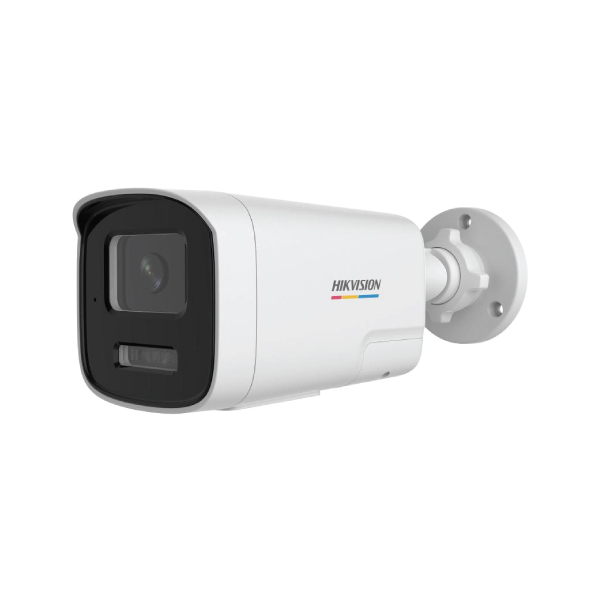

Fixed Bullet Network IP Camera |
| Lens |
| Number of Lens |
1 |
| Lens |
Fixed focal lens |
| Lens Mount |
M12 |
| Lens Adjustment Range |
Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° |
| Focal Length |
2.8 mm or 4 mm optional |
| PTZ |
No |
| Viewing Angle. |
2.8 mm: Horiz. 106°, Vert. 56°, Diag. 129° / 4 mm: Horiz. 88°, Vert. 47°, Diag. 103° |
| Physical Description |
| Form-Factor |
Large Bullet |
| Smart Alarm |
Yes |
| Card Slot |
Yes |
| Body Material |
Metal front cover + Plastic body + Metal bracket |
| Color |
Black & White |
| Dimensions |
83.7 mm × 81 mm × 201.9 mm |
| Weight (gm) |
Approx. 390 g (0.9 lb.) |
| Power |
12 VDC ± 25% or PoE: IEEE 802.3af (Class 3) |
| Battery Capacity |
N/A |
| Battery Backup |
No |
| Battery Backup Time |
No |
| Approx. Power Consumption |
Max. 8.6 W (12 VDC) / Max. 10.4 W (PoE) |
| Operating Temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
| Storing/Storage Temperature |
-30 °C to 60 °C (-22 °F to 140 °F) Humidity 95% or less (non-condensing) |
| Operating Humidity |
95% or less (non-condensing) |
| Storing/Storage Humidity |
95% or less (non-condensing) |
| Network & Connectivity |
| Sim Supported |
No |
| Sim Network Type |
N/A |
| Interface(s) |
1x RJ45 10M/100M self-adaptive Ethernet port, 1x MicroSD slot |
| Wi-Fi |
No |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP |
| Camera & Other Details |
| Number of Camera |
1 |
| Camera Type |
Fixed Bullet Network IP Camera |
| Mega Pixels (MP) |
2 MP |
| Max. Camera Resolution |
1920 × 1080 |
| Secondary Camera Type |
N/A |
| Secondary Camera Mega Pixel (MP) |
N/A |
| Sensor Type. |
1/2.8" Progressive Scan CMOS |
| Resolution |
1080p Full HD |
| Shutter Speed |
1 s to 1/100,000 s |
| Day & Night |
IR Cut Filter |
| Night Vision |
Yes (Smart Hybrid Light - Infrared + White Light) |
| S/N Ratio |
≥ 52 dB |
| Scanning System |
Progressive Scan |
| Video Type |
Network IP (H.265+ / H.265 / H.264+ / H.264) |
| Mic & Speaker |
Built-in Microphone (No Speaker) |
| Audio Communication |
One-way audio recording |
| Ingress Protection Grade |
IP67 |
| Working Distance |
Up to 50 meters illumination range |
| Image |
| Dual-Stream |
Yes |
| Frame Rate |
50 Hz: 25 fps (1920 × 1080) / 60 Hz: 30 fps (1920 × 1080) |
| Noise Reduction |
3D DNR (AI-ISP enhanced) |
| Wide Dynamic Range (WDR) |
120 dB True WDR |
| Security |
| Security |
Password protection, Complicated password, HTTPS encryption, IP address filter, Security audit log, Basic and digest authenticatio
n for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
| Watermark |
Yes |
| Motion Detection |
Yes |
| Human Detection |
Yes |
| Dust Protection |
Yes |
| Water Protection |
Yes |
| Weather Proof |
Yes |
| Warranty Details |
| Warranty |
2 Year |
| Additional Info |
| Specialty |
ColorVu 3.0 Technology (24/7 vivid color imaging in pitch darkness), Smart Hybrid Light (intelligent automatic switching between I
nfrared and White Light), Motion Detection 3.0 (AI-powered deep learning for accurate human and vehicle classification, minimizing
false alarms), and a built-in microphone for real-time synchronized audio recording. |
| Country Of Origin |
China |
| Made in/ Assemble |
China |
