| General |
| Brand |

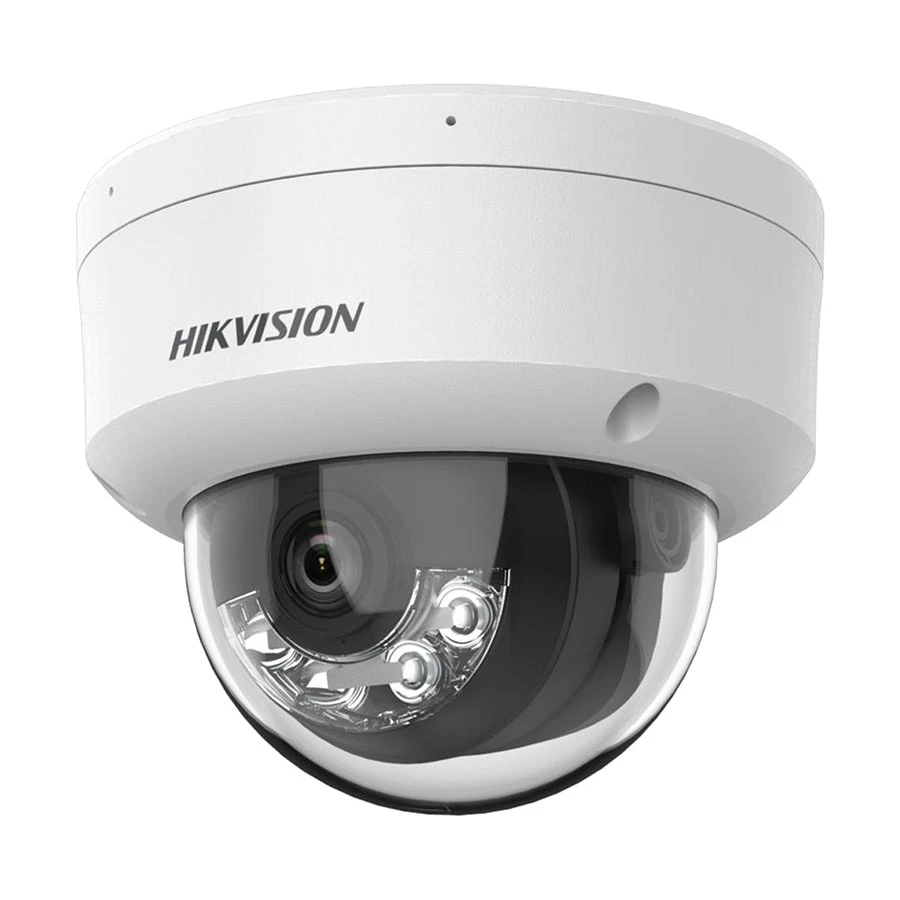

Hikvision |
| Model |
DS-2CD1143G2-LIU |
| Usage |
Indoor & Outdoor |
| Lens |
| Number of Lens |
Single Lens (Primary) |
| Lens |
2.8mm |
| Lens Mount |
M12 |
| Lens Adjustment Range |
Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Focal Length |
2.8 mm / 4 mm |
| PTZ |
No |
| Viewing Angle. |
2.8 mm: Horizontal 98°, Vertical 54°, Diagonal 114° | 4 mm: Horizontal 78°, Vertical 42°, Diagonal 93° |
| Physical Description |
| Form-Factor |
Dome |
| Smart Alarm |
Motion detection 2.0 (human and vehicle targets classification), video tampering alarm, exception |
| Card Slot |
Yes |
| Storage Type |
Unmentioned |
| Body Material |
Metal & Plastic |
| Color |
White |
| Dimensions |
Ø 121.4 mm × 97.7 mm (Ø 4.8" × 3.8") |
| Weight (gm) |
550 g |
| Power |
12 VDC ± 25% or PoE (802.3af, Class 3) |
| Battery Capacity |
N/A |
| Battery Backup |
No |
| Battery Backup Time |
Not Applicable |
| Approx. Power Consumption |
7.5W |
| Operating Temperature |
-30 Degree C to 60 Degree C |
| Storing/Storage Temperature |
-30 Degree C to 60 Degree C |
| Operating Humidity |
95% or less (non-condensing) |
| Storing/Storage Humidity |
95% or less (non-condensing) |
| Network & Connectivity |
| Sim Supported |
No |
| Sim Network Type |
Not Applicable |
| Interface(s) |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Wi-Fi |
No |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Camera & Other Details |
| Number of Camera |
1 |
| Camera Type |
Fixed |
| Mega Pixels (MP) |
4.0 |
| Max. Camera Resolution |
2560 x 1440 |
| Secondary Camera Type |
Not Applicable |
| Secondary Camera Mega Pixel (MP) |
Not Applicable |
| Sensor Type. |
1/3 Inch Progressive Scan CMOS |
| Resolution |
2560 × 1440 |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Night Vision |
Yes |
| Night Vision Mode |
Color |
| S/N Ratio |
≥ 52 dB |
| Scanning System |
Progressive ScanVideo Type: H.265+ / H.265 / H.264+ / H.264 / MJPEGMic & Speaker: Built-in Microphone O |
| Video Type |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Mic & Speaker |
Built-in Microphone Only (No Speaker) |
| Audio Communication |
One-way audio (Listen-in only) |
| Ingress Protection Grade |
IP67 & IK08 |
| Working Distance |
Up to 30 Meters (Night Vision Range) |
| Image |
| Dual-Stream |
Yes |
| Frame Rate |
50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) | 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720
) |
| Noise Reduction |
3D DNR |
| Wide Dynamic Range (WDR) |
120 dB True WDR |
| Security |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authenticatio
n for HTTP/HTTPS, TLS 1.X, TLS 1.2 |
| Watermark |
Yes |
| Motion Detection |
Yes |
| Human Detection |
Yes |
| Dust Protection |
Yes |
| Water Protection |
Yes |
| Weather Proof |
Yes |
| Warranty Details |
| Warranty |
2 Year |
| Warranty Condition |
Without Adapter |
| Additional Info |
| Specialty |
Environment Noise Filtering, 4 programmable polygon privacy masks, High quality imaging with 4 MP resolution, Support Human and Ve
hicle Detection, Smart Hybrid Light: advanced technology with long range, Built-in microphone for real-time audio security, Effici
ent H.265+ compression technology, Water and dust resistant (IP67) and vandal resistant (IK08). |
| Country Of Origin |
China |
| Made in/ Assemble |
China |
