| General |
| Brand |
Gigabyte |
| Model |
Gigabyte GP-P550B |
| PSU Category |
Non Modular |
| Type |
ATX 12V V2.31 |
| Physical Description |
| MTBF |
100000 Hours |
| Form Factor |
ATX |
| Dimensions |
150 x 140 x 86 mm |
| Color |
Black |
| Performance & Protection |
| Efficiency |
85% Efficiency |
| Efficiency Rating |
80 Plus Bronze |
| PFC (Power Factor Correction) |
Active PFC(>0.9 typical) |
| Power Good Signal |
100-500ms |
| Hold Up Time |
>16ms |
| Protection |
OVP, OPP, SCP, UVP, OCP, OTP |
| Over Voltage Protection (OVP) |
Yes |
| Over Power Protection (OPP) |
Yes |
| Over Current Protection (OCP) |
Yes |
| Over Temperature Protection (OTP) |
Yes |
| Short Circuit Protection (SCP) |
Yes |
| Under Voltage Protection (UVP) |
Yes |
| Connectors, Features & Power |
| ATX Main Connectors |
1 |
| PCIe Connectors |
2 |
| SATA Power Connectors |
6 |
| 4-Pin Peripheral Connectors |
3 |
| Min. Power (Approx.) |
465W |
| Maximum Power |
550 Watt |
| Input AC |
100-240Vac |
| Input Voltage |
100 - 240V |
| Input Frequency Range |
50Hz - 60Hz |
| Input Current |
8A-4A |
| Fan Size |
120mm |
| Lighting Effect |
No |
| Lighting Type |
Not Applicable |
| Fan Bearing |
Hydraulic Bearing |
| Warranty Details |
| Warranty |
3 Year |
| Warranty Condition |
3 Year with Burn Case |
| Additional Info |
| Country Of Origin |
Taiwan |
| Made in/ Assemble |
China |
| Feature |

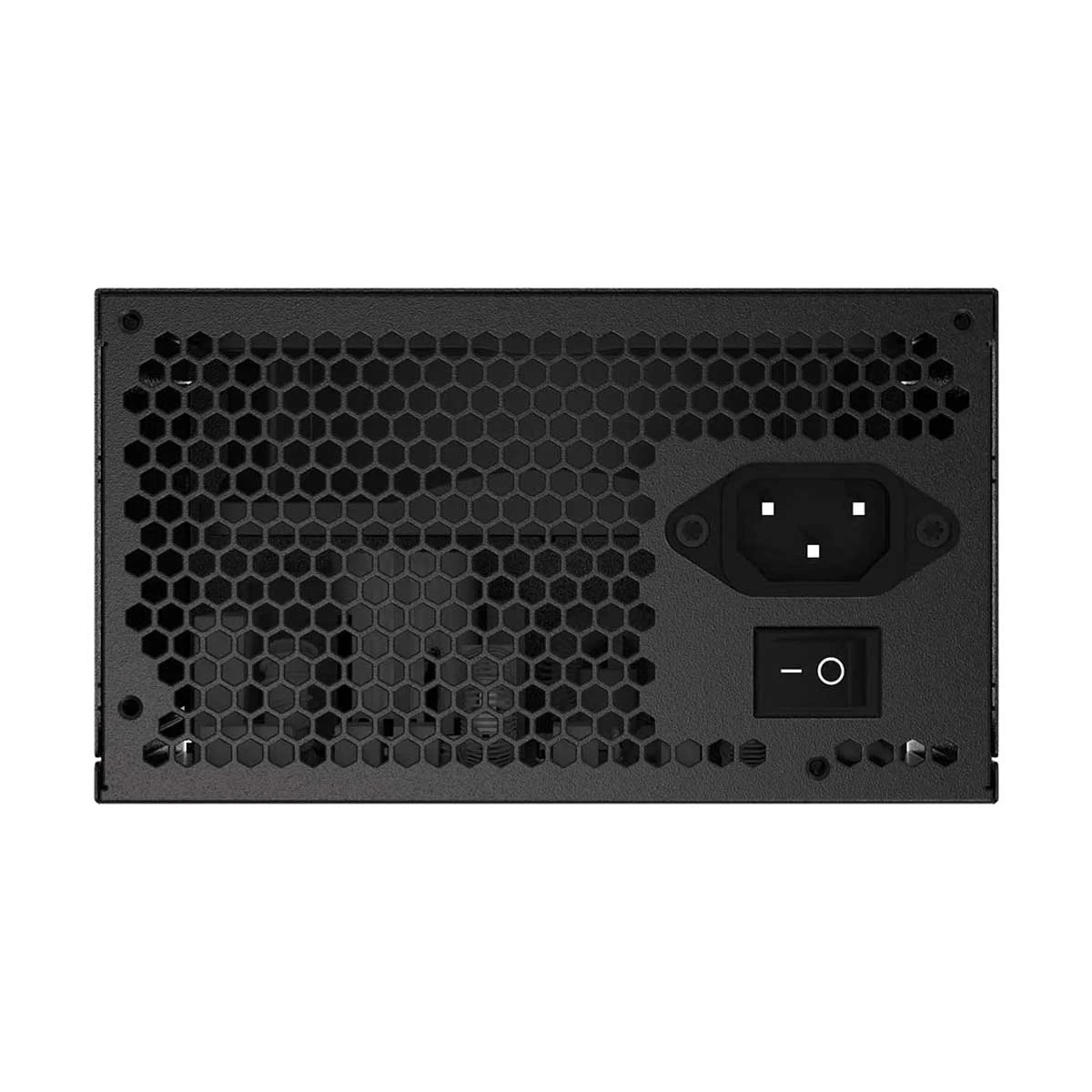

When you’re building a PC, nothing feels better than knowing every component is ready to perform at its best. The Gigabyte GP-P5
50B 550W Non Modular 80 Plus Bronze Certified PSU is built to bring that confidence. It delivers stable power, efficient perfor |
| Specialty |
80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, les
s heat and less fan noise. 120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The |
