| General |
| Brand |
Gigabyte |
| Model |

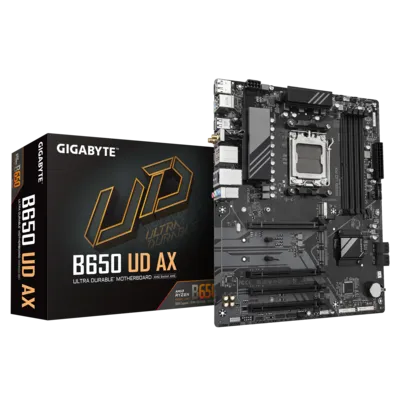

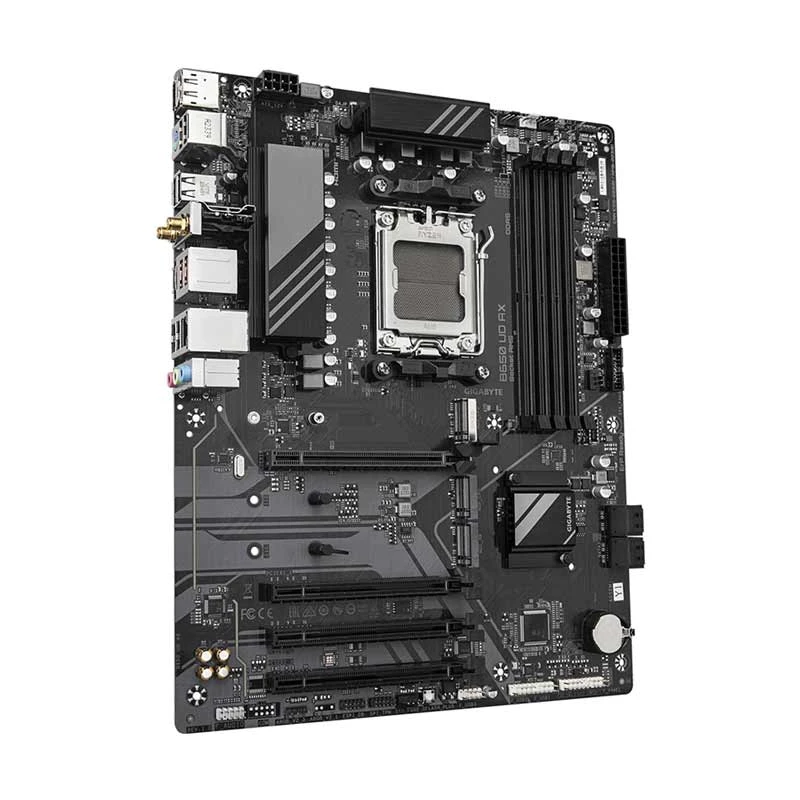

Gigabyte B650 UD AX |
| CPU |
| Chipset Brand |
AMD |
| Chipset |
AMD B650 |
| Sockets Supported |
AM5 |
| Built-in Processor |
No |
| Supported CPU |
AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
| Memory & Storage Support |
| Memory Type |
DDR5 |
| Memory MHz |
7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s non-ECC Un-buffered DIMM |
| Memory Channel |
Dual |
| Memory Slot |
4 |
| Memory Max. |
128 GB |
| Storage Interface |
6.0Gb/s |
| M.2/SSD Expansion Slot |
3 |
| M.2/SSD Expansion Slot Details |
3 x M.2, ((1 x M.2 type 25110/22110/2580/2280 SSDs), (1 x M.2 type 22110/2280 SSDs), (1 x M.2 type 22110/2280 PCIe 4.0 x4/x2 SSD s
upport)) |
| M.2/SSD Slot Gen |
Up to Gen 5 |
| Graphics |
| Graphics Chipset |
Integrated With Processor |
| PCI Express Slot |
1 x PCI Express x16 slot (PCIEX16), 2 x PCI Express x16 slots |
| Multi-GPU Support |
No |
| Ports |
| USB Port |
1 x USB Type-C port, with USB 3.2 Gen 1 support, 2 x USB 3.2 Gen 2 Type-A ports (red), 6 x USB 2.0/1.1 ports |
| VGA Port |
No |
| DVI Port |
No |
| HDMI Port |
1 |
| DisplayPort (DP) |
1 |
| SATA Port |
4 |
| Thunderbolt |
No |
| Network & Connectivity |
| LAN Chipset |
Realtek GbE LAN |
| LAN Speed (Mbps) |
10/ 100/ 1000Mbps |
| WiFi |
Yes |
| Bluetooth |
Bluetooth 5.0 |
| WiFi Technology |
WIFI 6 |
| Audio |
| Audio Chipset |
Realtek Audio CODEC High Definition Audio |
| Audio Channel |
7.1 |
| Audio Features |
Realtek Audio CODEC, ALC897, High Definition Audio |
| Software |
| Supported Operating System |
Windows 10, Windows 11 |
| Technical Info |
| Back-Connect Design |
No |
| Cable Management |
Front |
| Heatsink |
No |
| RGB Support |
RGB |
| Approx. Power Consumption |
70W |
| Form Factor |
ATX |
| Warranty Details |
| Warranty |
3 Year |
| Additional Info |
| Country Of Origin |
Taiwan |
| Made in/ Assemble |
China |
| Feature |
Unparalleled Performance: 6+2+2 Phase Digital VRM Solution, Dual Channel DDR5: 4 x SMD DIMMs with AMD EXPO & Intel XMP Memory Modu
le Support, SuperSpeed Storage: 1x PCIe 5.0 + 2 x PCIe 4.0 M.2 Connectors, EZ-Latch: PCIe x16 Slot with Quick Release Design, Fast
Networks: Wi-Fi 6 802.11ax & GbE LAN, Extended Connectivity: DP, HDMI, Rear USB 10 Gb/s, Smart Fan 6: Features Multiple Temperatu
re Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and Graphics Card |
| Others Info |
I/O Controller: iTE I/O Controller Chip, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cool
ing flow rate detection, Fan fail warning, Fan speed control, Unique Features: Support for GIGABYTE Control Center (GCC), Support
for Q-Flash, Support for Q-Flash Plus, Bundled Software: Norton Internet Security (OEM version), LAN bandwidth management software |
| Bios Information |
| BIOS Type |
1 x 256 Mbit flash |
| BIOS Model |
AMI UEFI BIOS |
