| General |
| Brand |
Gigabyte |
| Model |

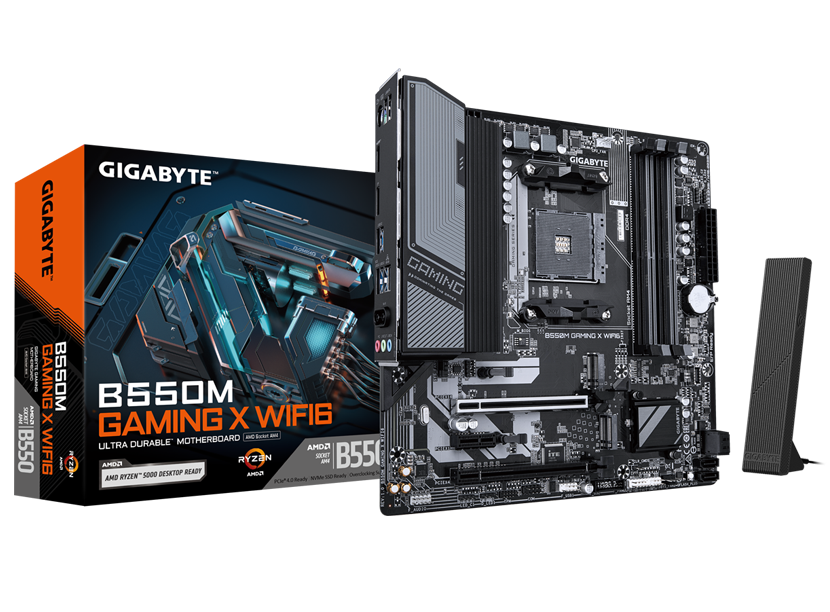

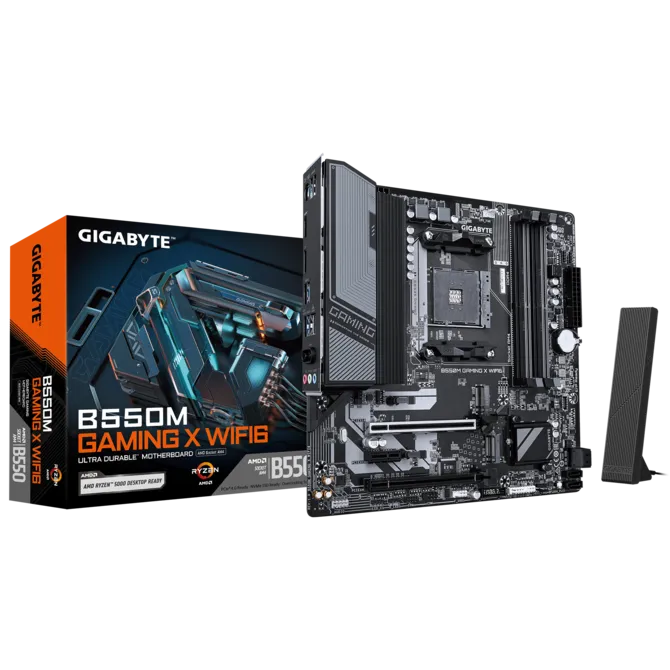

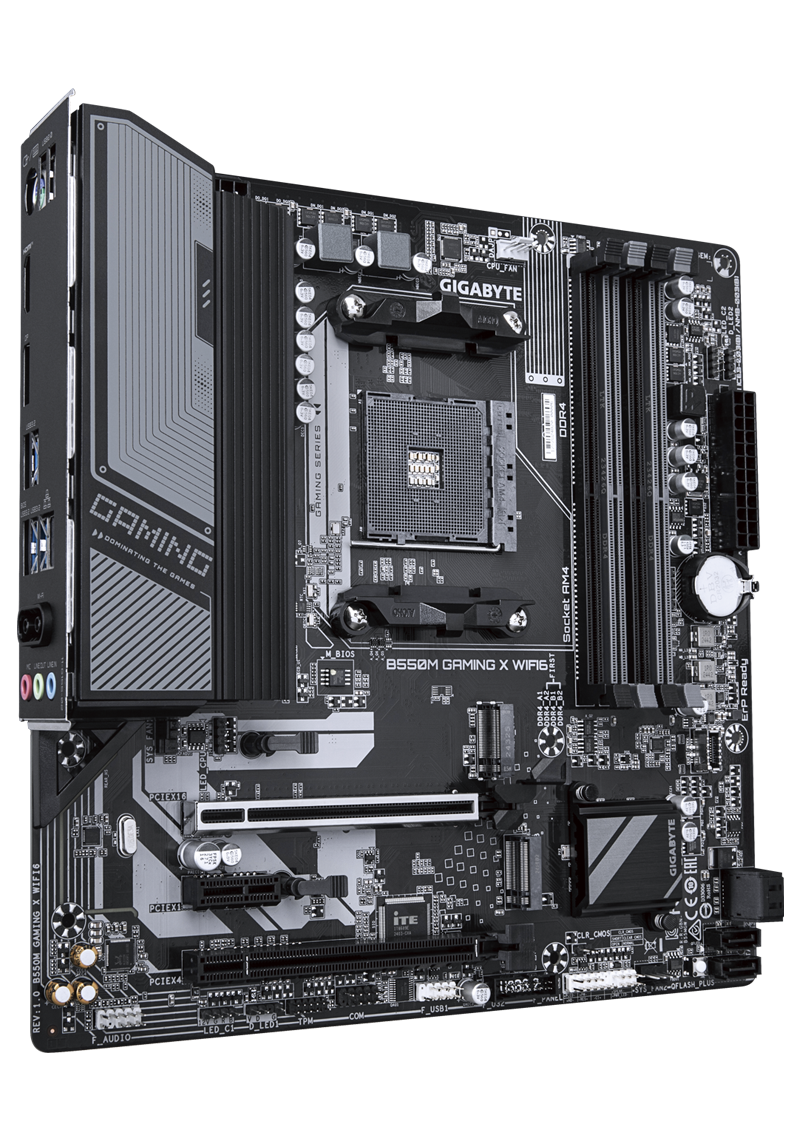

Gigabyte B550M GAMING X (Wi-Fi 6) |
| Part No |
B550M GAMING X WIFI6 |
| CPU |
| Chipset Brand |
AMD |
| Chipset |
AMD B550 |
| Sockets Supported |
AM4 |
| Built-in Processor |
No |
| Supported CPU |
AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 G-Series
Processors/ AMD Ryzen 3000 Series Processors |
| Memory & Storage Support |
| Memory Type |
DDR4 |
| Memory MHz |
3200/ 2933/ 2667/ 2400/ 2133 MT/s |
| Memory Channel |
Dual |
| Memory Slot |
4 |
| Memory Max. |
128 GB |
| M.2/SSD Expansion Slot |
2 |
| M.2/SSD Expansion Slot Details |
2 x M.2 (1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSD, 1 x M.2 connector (M2B_SB)
, integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSD) |
| M.2/SSD Slot Gen |
Up to Gen 4 |
| Graphics |
| Graphics Chipset |
Integrated With Processor |
| PCI Express Slot |
1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4, 1 x PCI Express x1 s
lot (PCIEX1), supporting PCIe 3.0 and running at x1 |

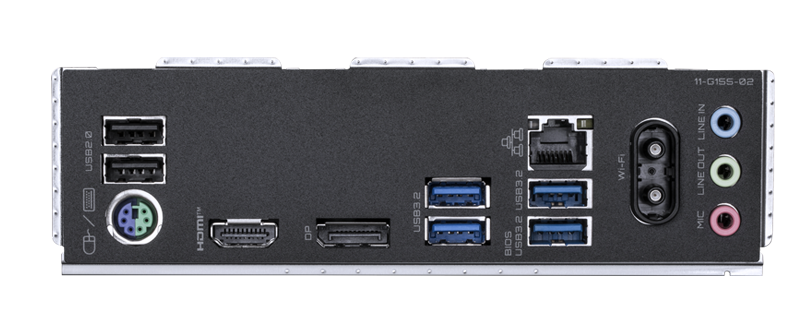

| Ports |
| VGA Port |
No |
| DVI Port |
No |
| HDMI Port |
1 |
| DisplayPort (DP) |
1 |
| SATA Port |
4 x SATA |
| Thunderbolt |
No |
| Network & Connectivity |
| LAN Speed (Mbps) |
10/100/1000 Mbps |
| WiFi |
Yes |
| Bluetooth |
181 |
| Audio |
| Audio Chipset |
Realtek ALC1220 CODEC |
| Audio Channel |
2/4/5.1/7.1 |
| Software |
| Technical Info |
| Cable Management |
Front |
| Heatsink |
Yes |
| RGB Support |
ARGB |
| RGB Connector |
2 x addressable LED strip headers, 2 x RGB LED strip headers |
| Approx. Power Consumption |
60W |
| Form Factor |
Micro-ATX |
| Warranty Details |
| Warranty |
3 Year |
| Warranty Condition |
3 Years Replacement Warranty |
| Additional Info |
| Country Of Origin |
Taiwan |
| Made in/ Assemble |
China |
| Feature |
Micro-ATX B660 business motherboard with enhanced security, reliability, manageability and serviceability |
| Others Info |
Micro-ATX B660 business motherboard with enhanced security, reliability, manageability and serviceability |
| Bios Information |
| BIOS Type |
1 x 128 Mbit flash |
| BIOS Model |
AMI UEFI BIOS |
