| General |
| Brand |
Dahua |
| Model |

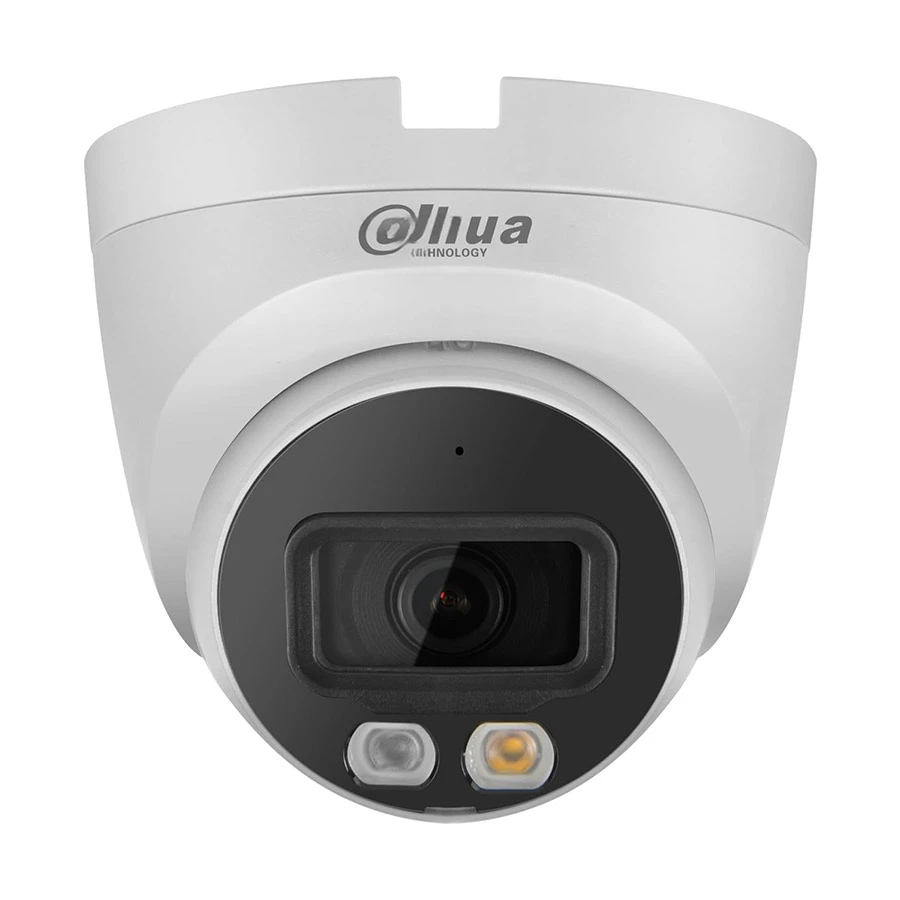

Dahua DH-IPC-HDW1439V-PV |
| Usage |
Outdoor |
| Type |
Dome IP Camera |
| Lens |
| Number of Lens |
Single Lens (Primary) |
| Lens |
Fixed-focal |
| Lens Mount |
M12 |
| Focal Length |
2.8mm |
| PTZ |
No |
| Viewing Angle. |
H: 94 Degree, V: 51 Degree, D: 110 Degree |
| Physical Description |
| Form-Factor |
Dome |
| Storage Type |
FTP |
| Body Material |
Metal + Plastic |
| Color |
White |
| Dimensions |
100.9 x 109.9mm |
| Weight (gm) |
320 gm |
| Approx. Power Consumption |
10W |
| Operating Temperature |
-40 Degree C to 60 Degree C |
| Storing/Storage Temperature |
-40 Degree C to 60 Degree C |
| Operating Humidity |
<=95% (RH), non-condensing |
| Storing/Storage Humidity |
<=95% (RH), non-condensing |
| Network & Connectivity |
| Interface(s) |
RJ-45 (10/100 Base-T) |
| Wi-Fi |
No |
| Protocols |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P;Auto Registrat
ion. |
| Camera & Other Details |
| Number of Camera |
1 |
| Camera Type |
Fixed |
| Mega Pixels (MP) |
4.0 |
| Max. Camera Resolution |
2560 x 1440 |
| Sensor Type. |
1/2.9 Inch CMOS |
| Resolution |
4M (2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640
x 480); CIF (352 x 288/352 x 240) |
| Shutter Speed |
Auto/Manual 1/3 s-1/100,000 s |
| Day & Night |
Auto(ICR)/Color/B/W |
| Night Vision |
Yes |
| Night Vision Mode |
Color |
| S/N Ratio |
&gt;56 dB |
| Scanning System |
Progressive |
| Video Type |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Mic & Speaker |
Both Mic and Speaker |
| Audio Communication |
Two-Way Talk |
| Ingress Protection Grade |
IP67 |
| Working Distance |
64 Meter |
| Image |
| Dual-Stream |
Yes |
| Frame Rate |
Main stream: 2560 x 1440@(1-25/30 fps), sub stream: 704 x 576@(1-25 fps)/704 x 480@(1-30 fps) |
| Noise Reduction |
Yes |
| Wide Dynamic Range (WDR) |
120 dB |
| Security |
| Watermark |
Yes |
| Motion Detection |
Yes |
| Human Detection |
Yes |
| Dust Protection |
Yes |
| Water Protection |
Yes |
| Warranty Details |
| Warranty |
2 Year |
| Additional Info |
| Specialty |
Human Detection: Support the classification and accurate detection of human, Smart Search: Work together with Smart NVR to perform
refine intelligent search, event extraction and merging to event videos. Alarm Event: Network disconnection; IP conflict; il |
| Country Of Origin |
China |
| Made in/ Assemble |
1107 |
