| General |
| Brand |
Cudy |
| Model |

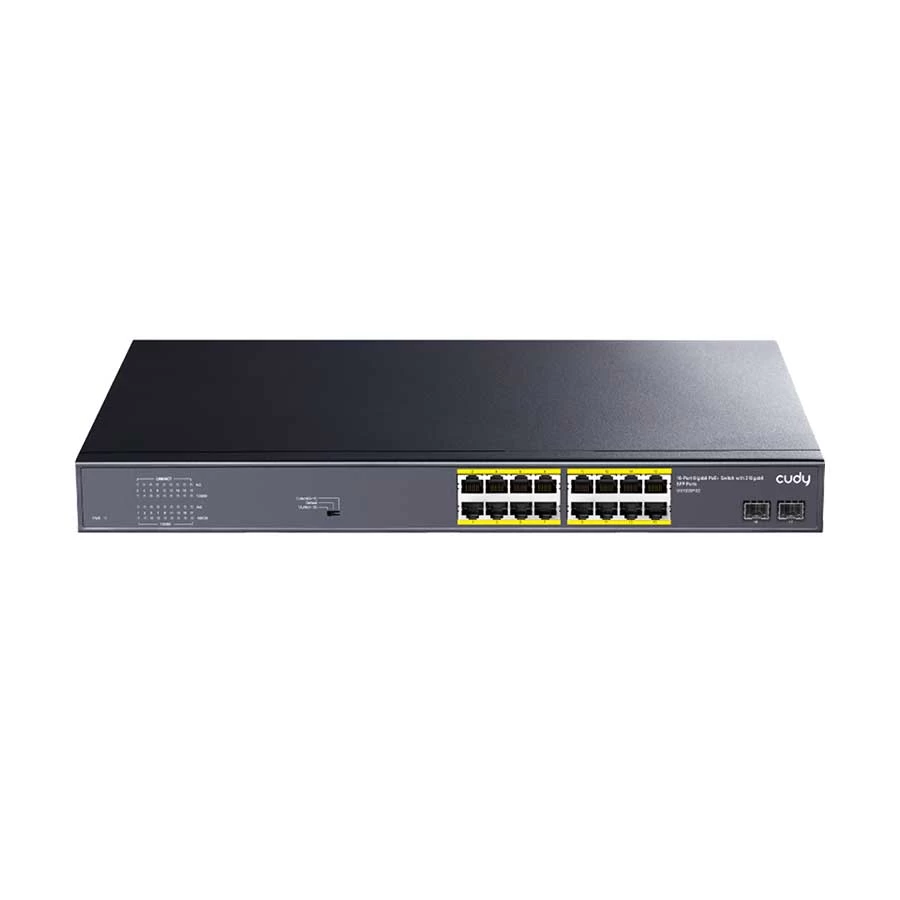

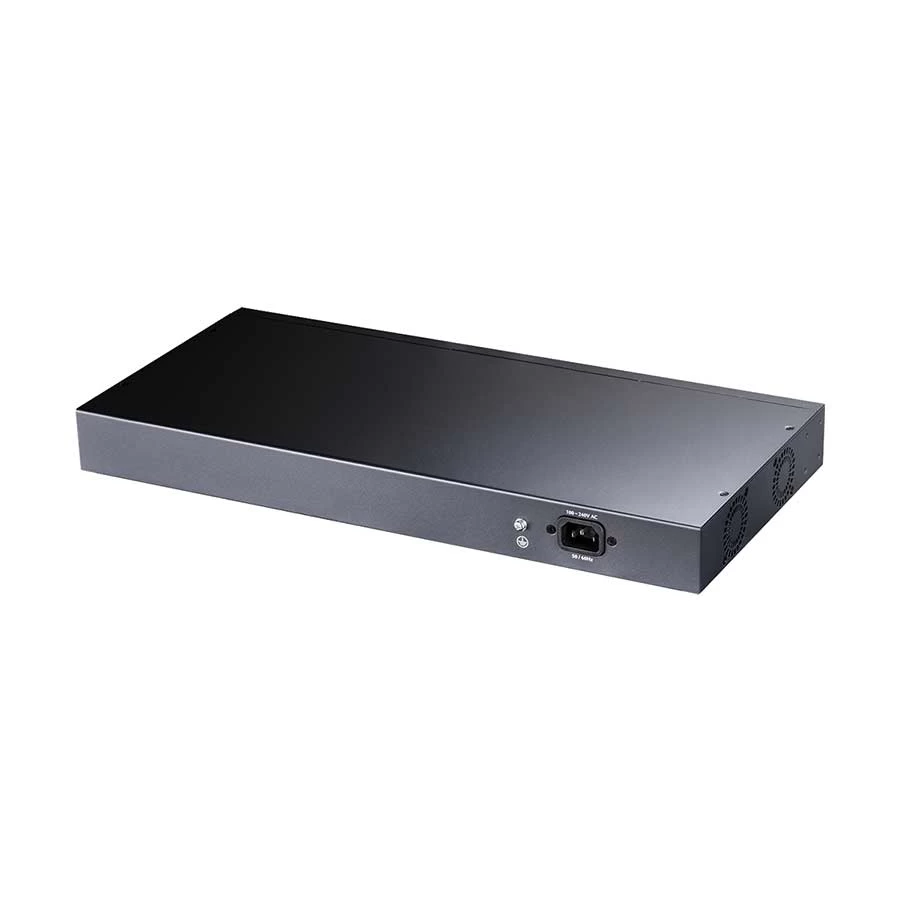

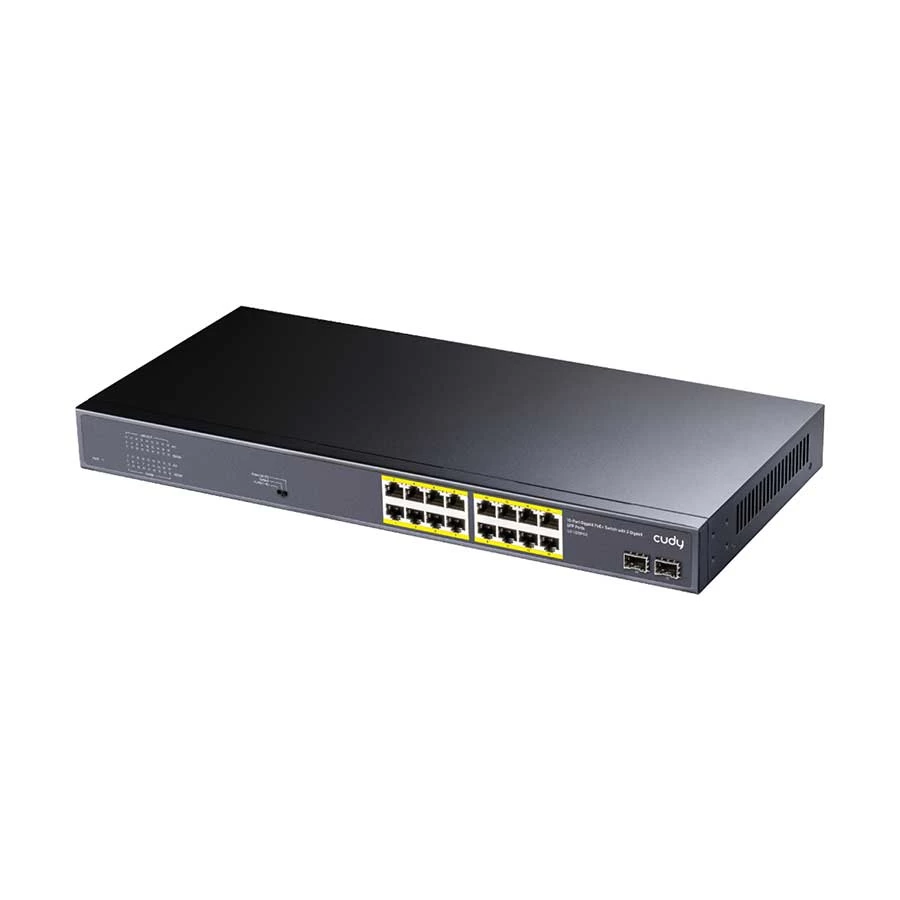

Cudy GS1020PS2 |
| Type |
Network Switch |
| Physical Description |
| Indicators |
LED : PWR, 1-26 |
| Body Material |
Metal |
| Body Color |
Black |
| Form Factor |
Desktop |
| Dimension |
440 x 204 x 44mm |
| Packet Contents |
1 x GS1020PS2, 1 x Power Cord, 1 x Mounting Kit, 1 x Installation Guide |
| Power Supply |
AC100-240V 50/60Hz |
| Approx. Power Consumption |
200W |
| Ports & Slots |
| Number of Total Port |
18 Port |
| SFP Port |
2 |
| Gigabit Port |
18 |
| PoE Port |
No |
| SFP+ Port |
No |
| PoE+ Port |
No |
| Technical Info |
| PoE |
Yes |
| Manageability |
Unmanaged |
| Interface(s) |
16 x GbE PoE+ Port, 2 x SFP/GbE Combo Port |
| Network Standards |
IEEE802.3af /IEEE802.3at |
| Data Transfer Rate |
10/100/1000 Mbps |
| Switching Capacity |
36 Gbps |
| OS Supported |
All OS |
| Additional Info |
| Others |
IEEE 802.3af / 802.3at standard compliant, 200-watt total PoE power budget, up to 30-watt per port, 16xGbE PoE+Port+2xSFP/GbE Comb
o Port, CCTV Mode supports remote power&data feeding up to 250M, VLAN mode supports 16 POE+ ports isolated from each othe |
| Specialty |
16-Port PoE + 2-Port Fiber, 200W Power budget & 30W Maximum One Port, Heat Dissipation, High Quality TPS PoE chipset inside, A
uto-sensing technology, Lightning protection |
| Country Of Origin |
China |
| Made in/ Assemble |
China |
| Warranty Details |
| Warranty |
1 Year |
| Warranty Condition |
1 Year (Without Adapter) |
