| General |
| Brand |
ASUS |
| Model |

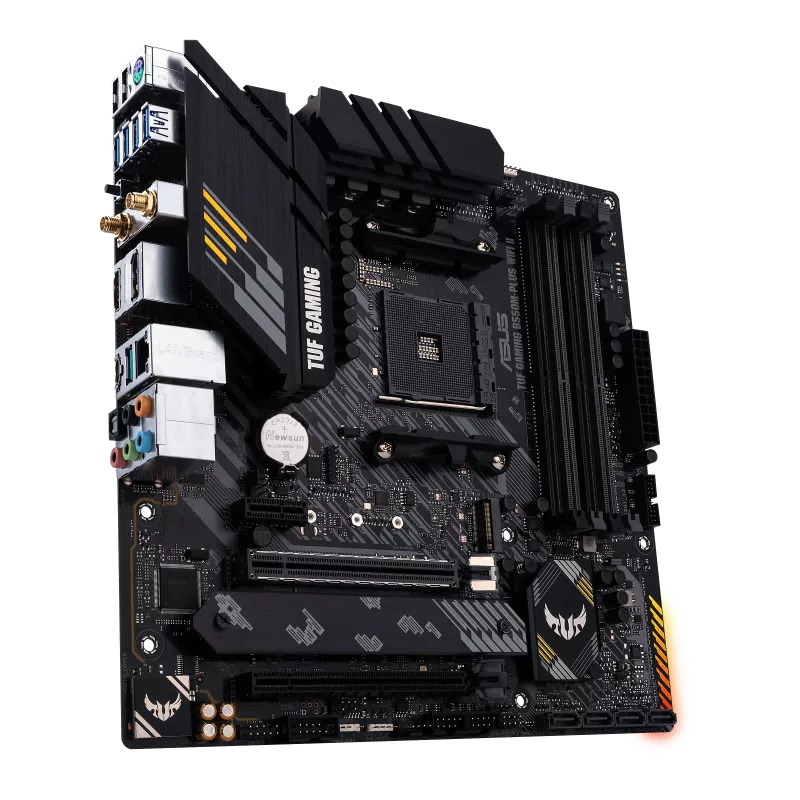

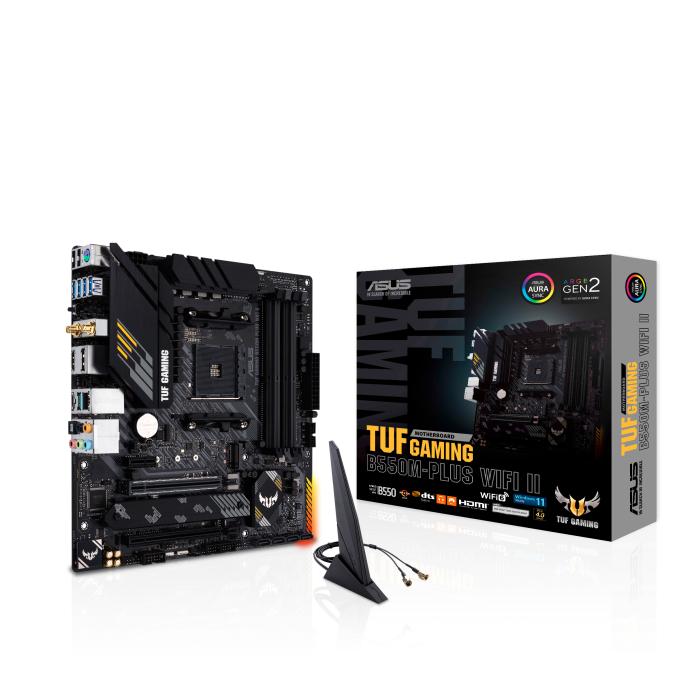

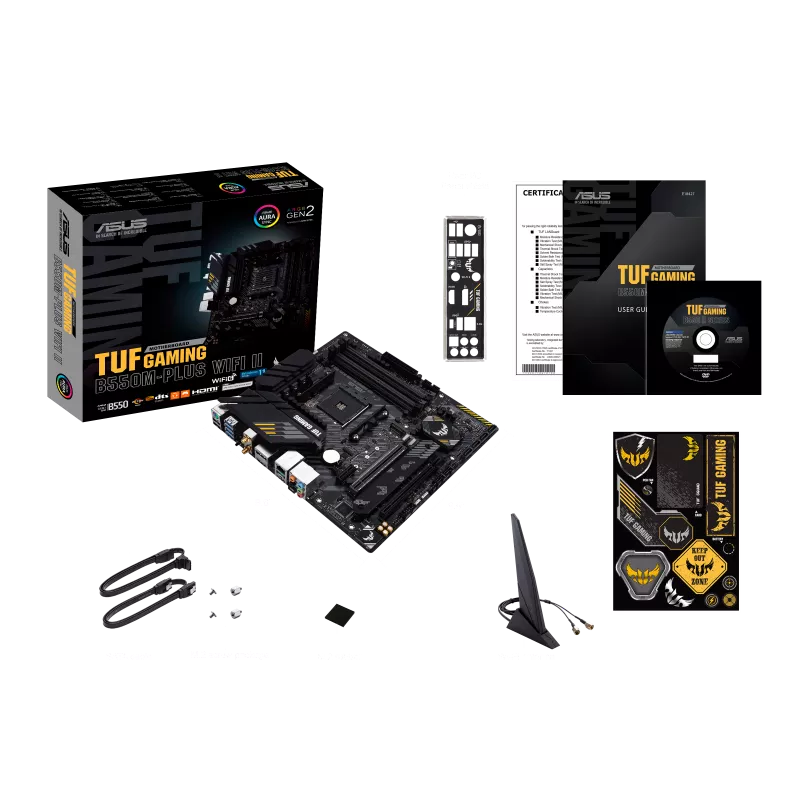

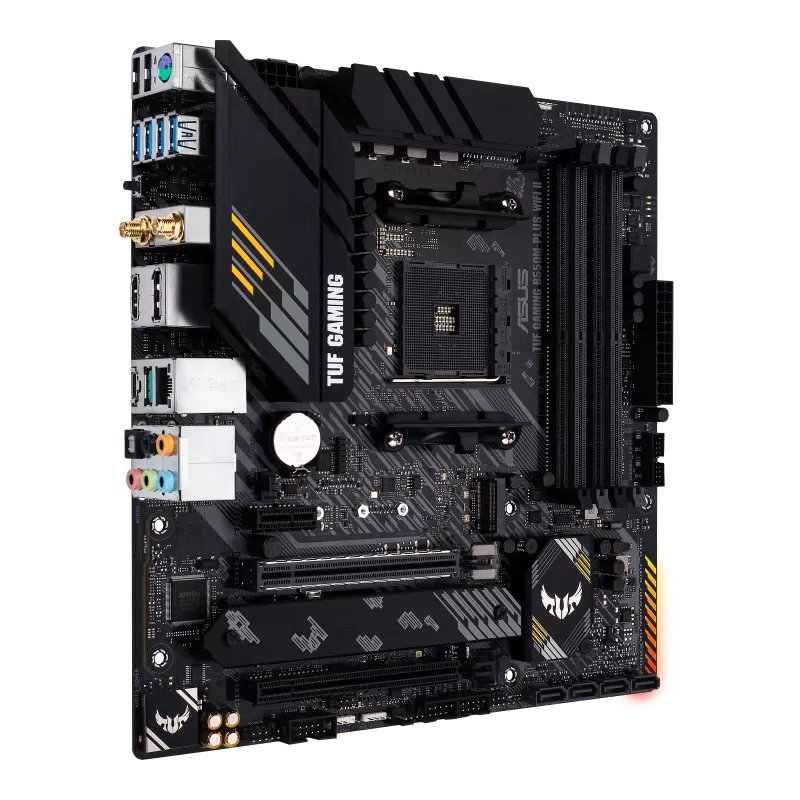

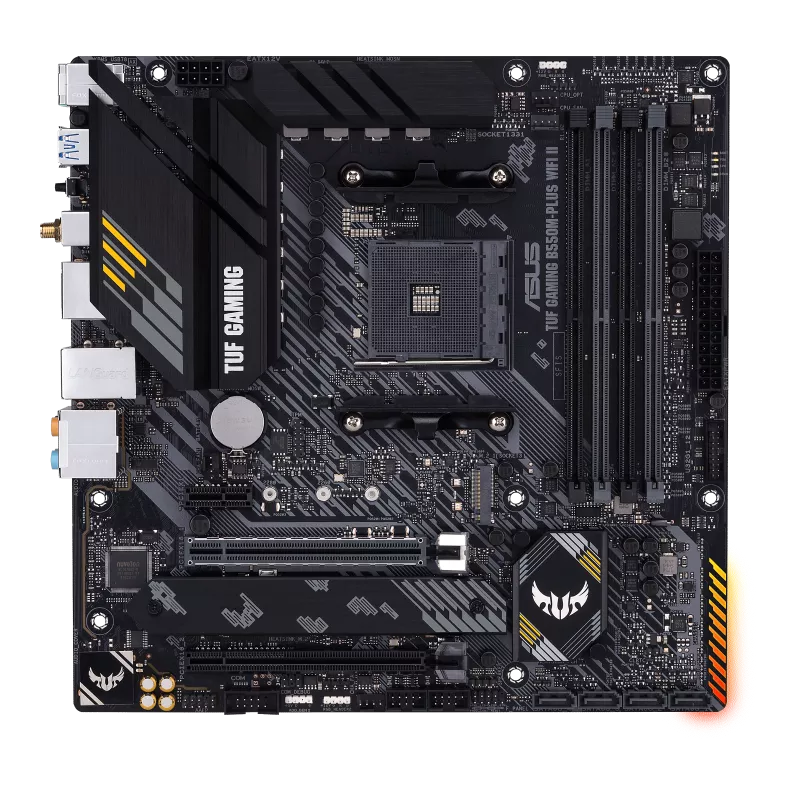

Asus TUF GAMING B550M-PLUS II (Wi-Fi 6) |
| CPU |
| Chipset Brand |
AMD |
| Chipset |
AMD B550 |
| Sockets Supported |
AM4 |
| Built-in Processor |
No |
| Supported CPU |
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Memory & Storage Support |
| Memory Type |
DDR4 |
| Memory MHz |
4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/
3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133MHz Un-buffered Memory. |
| Memory Channel |
Dual |
| Memory Slot |
4 |
| Memory Max. |
128 GB |
| Storage Interface |
6.0Gb/s |
| M.2/SSD Expansion Slot |
2 |
| M.2/SSD Expansion Slot Details |
2 x M.2 Slot (1 x M.2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes, 1 x M.2 (Key M), type 2242/
2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| M.2/SSD Slot Gen |
Up to Gen 4 |
| Graphics |
| Graphics Chipset |
Integrated With Processor |
| PCI Express Slot |
1 x PCIe 4.0 x16 slot (supports x16 mode), 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot, |
| Multi-GPU Support |
No |
| Ports |
| USB Port |
1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| VGA Port |
No |
| DVI Port |
No |
| HDMI Port |
1 |
| DisplayPort (DP) |
1 |
| SATA Port |
4 x SATA |
| Thunderbolt |
No |
| Network & Connectivity |
| WiFi Technology |
Wi-Fi 6 2x2 (802.11 a/b/g/n/ac/ax) |
| LAN Chipset |
TUF LANGuard |
| LAN Speed (Mbps) |
10/10/1000/2500Mbps |
| WiFi |
Yes |
| Bluetooth |
Bluetooth 5.2 |
| Audio |
| Audio Chipset |
Realtek High Definition Audio CODEC |
| Audio Channel |
7.1 |
| Software |
| Supported Operating System |
Windows 11 / 10 |
| Technical Info |
| Back-Connect Design |
No |
| Cable Management |
Front |
| Heatsink |
Yes |
| RGB Support |
ARGB |
| RGB Connector |
1 x Addressable Gen 2 header, 2 x AURA RGB headers |
| Form Factor |
Micro-ATX |
| Warranty Details |
| Warranty |
3 Year |
| Warranty Condition |
3 Year Replacement |
| Additional Info |
| Country Of Origin |
Taiwan |
| Made in/ Assemble |
China |
| Feature |
Supports max. 4K@60Hz as specified in DisplayPort 1.2, Supports 4K@60Hz as specified in HDMI 2.1. |
| Bios Information |
| BIOS Type |
256 Mb Flash ROM |
| BIOS Model |
UEFI AMI BIOS |
