| General |
| Brand |
ASUS |
| Model |

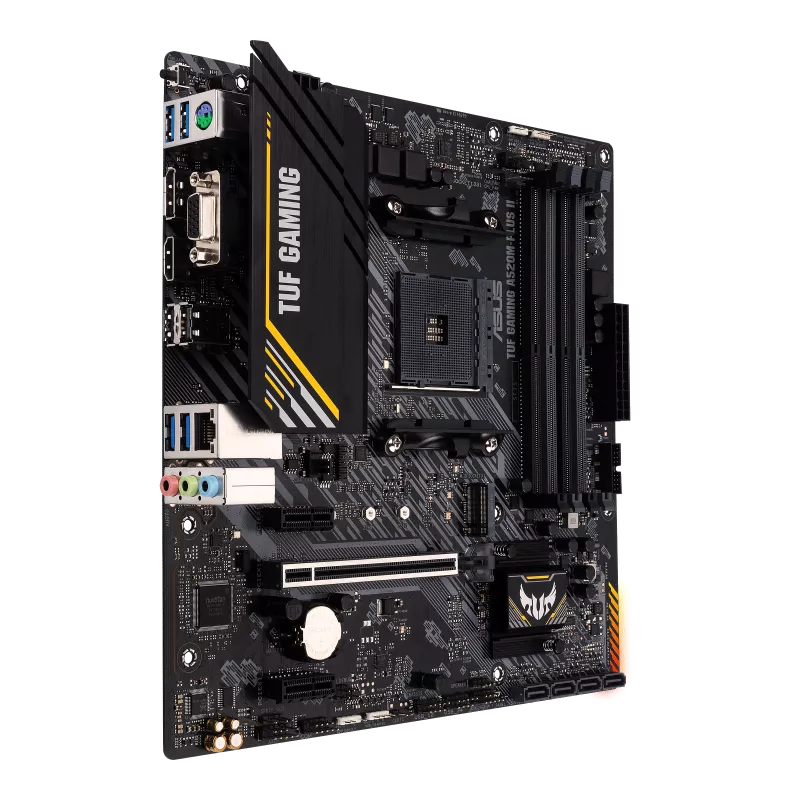

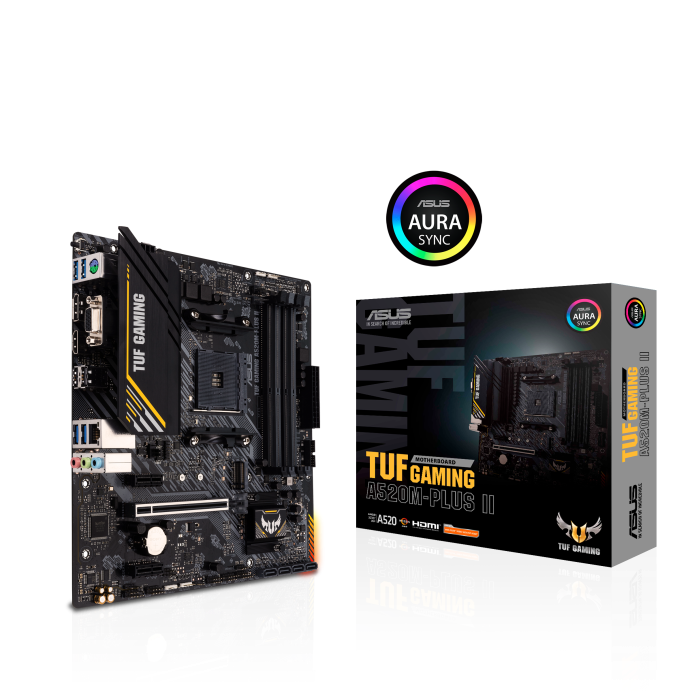

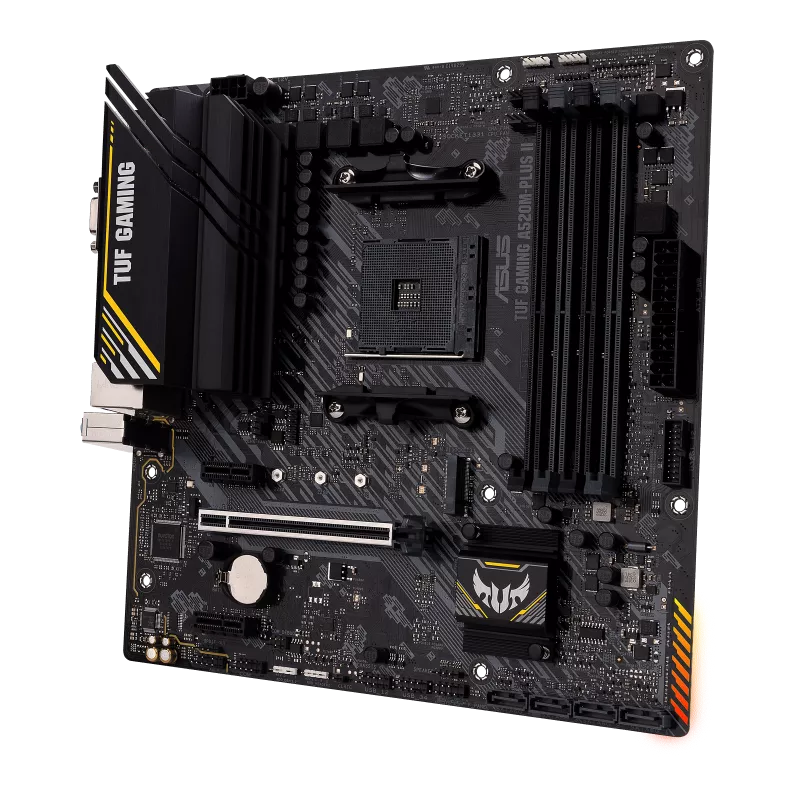

Asus TUF GAMING A520M-PLUS II AMD AM4 |
| CPU |
| Chipset Brand |
AMD |
| Chipset |
AMD A520 |
| Sockets Supported |
AM4 |
| Built-in Processor |
No |
| Generation |
Ryzen 5000 Series |
| Supported CPU |
Ryzen 5000/ 4000 G/ 3000 Series |
| Memory & Storage Support |
| Memory Type |
DDR4 |
| Memory MHz |
4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/3600(OC)/ 3466(OC)/ 3333(OC)/ 3
200/ 3000/ 2800/2666/2 400/ 2133 MHz | |
| Memory Channel |
Dual |
| Memory Slot |
4 |
| Memory Max. |
128 GB |
| Storage Interface |
6.0Gb/s |
| M.2/SSD Expansion Slot |
1 |
| M.2/SSD Expansion Slot Details |
1 x M.2 (type 2242/ 2260/ 2280, supports PCIe 3.0 x4 & SATA modes) |
| M.2/SSD Slot Gen |
Up to Gen 3 |
| Graphics |
| Graphics Chipset |
Integrated With Processor |
| PCI Express Slot |
1 x PCIe 3.0 x1 slot |

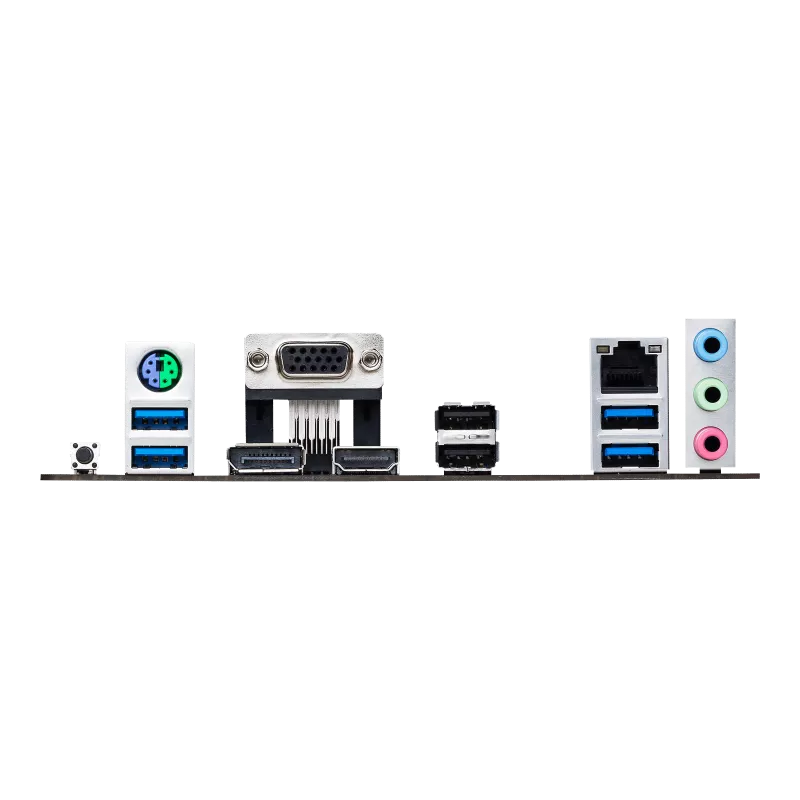

| Ports |
| USB Port |
4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports add
itional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
| VGA Port |
1 |
| DVI Port |
No |
| HDMI Port |
1 |
| DisplayPort (DP) |
1 |
| SATA Port |
4 x SATA |
| Thunderbolt |
No |
| Network & Connectivity |
| LAN Chipset |
1 x Realtek 1Gb Ethernet TUF LANGuard |
| LAN Speed (Mbps) |
10 / 100 / 1000Mbps |
| WiFi |
No |
| Bluetooth |
No |
| Audio |
| Audio Chipset |
Realtek ALC887/897 |
| Audio Channel |
7.1 |
| Software |
| Supported Operating System |
Windows 11 |
| Technical Info |
| Back-Connect Design |
No |
| Cable Management |
Front |
| Heatsink |
Yes |
| RGB Support |
ARGB |
| RGB Sync |
AURA SYNC |
| RGB Connector |
2 x AURA RGB headers, 2 x AURA Addressable Gen 2 header |
| Approx. Power Consumption |
60W |
| Form Factor |
Micro-ATX |
| Warranty Details |
| Warranty |
3 Year |
| Warranty Condition |
3 Year Replacement |
| Additional Info |
| Country Of Origin |
Taiwan |
| Made in/ Assemble |
China |
| Feature |
4+2 VRM Phase. |
| Bios Information |
| BIOS Type |
128 Mb Flash ROM |
| BIOS Model |
UEFI AMI BIOS |
