| General |
| Brand |
ASUS |
| Model |

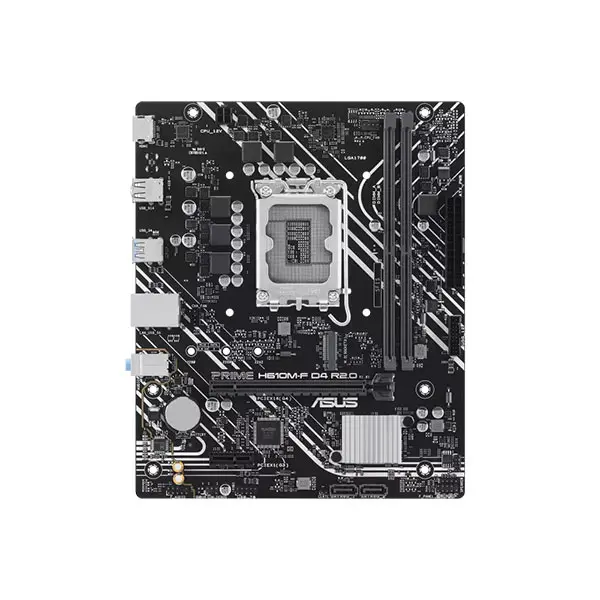

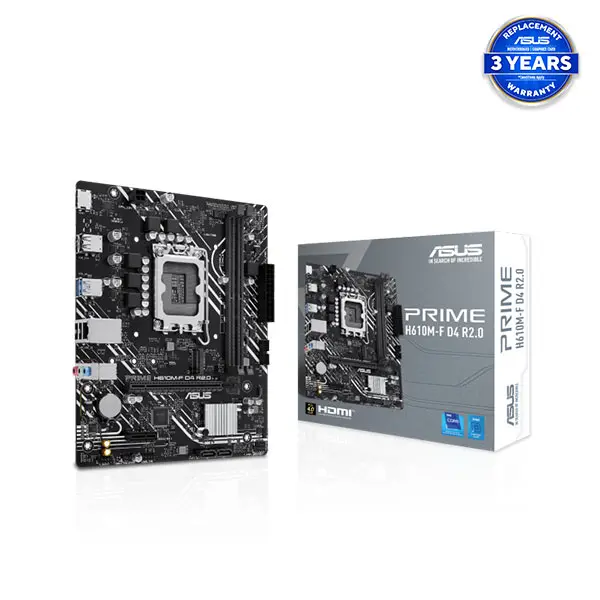

Asus PRIME H610M-F D4 R2.0 |
| CPU |
| Chipset Brand |
Intel |
| Chipset |
Intel H610 |
| Sockets Supported |
LGA1700 |
| Built-in Processor |
No |
| Generation |
12th/13th/14th |
| Supported CPU |
Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors |
| Memory & Storage Support |
| Memory Type |
DDR4 |
| Memory MHz |
3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory |
| Memory Channel |
Dual |
| Memory Slot |
2 |
| Memory Max. |
64 GB |
| Storage Interface |
6.0Gb/s |
| M.2/SSD Expansion Slot |
1 |
| M.2/SSD Expansion Slot Details |
1 x M.2 (M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)) |
| M.2/SSD Slot Gen |
Up to Gen 3 |
| Graphics |
| Graphics Chipset |
Integrated With Processor |
| PCI Express Slot |
1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Ports |
| USB Port |
2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A |
| VGA Port |
No |
| DVI Port |
No |
| HDMI Port |
1 |
| DisplayPort (DP) |
No |
| SATA Port |
2 x SATA |
| Thunderbolt |
No |
| Network & Connectivity |
| LAN Chipset |
1 x Realtek 1Gb |
| LAN Speed (Mbps) |
10/ 100/ 1000Mbps |
| WiFi |
No |
| Bluetooth |
182 |
| Audio |
| Audio Chipset |
Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Channel |
7.1 |
| Software |
| Supported Operating System |
Windows 11, 10 |
| Technical Info |
| Back-Connect Design |
No |
| Cable Management |
Front |
| Heatsink |
No |
| RGB Support |
No |
| Approx. Power Consumption |
60W |
| Form Factor |
Micro-ATX |
| Warranty Details |
| Warranty |
3 Year |
| Warranty Condition |
3 Year Replacement |
| Additional Info |
| Country Of Origin |
Taiwan |
| Made in/ Assemble |
China |
| Feature |
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard
, Overvoltage protection, SafeSlot Core, Stainless-steel back I/O, ASUS Q-Design: Q-DIMM, Q-Slot, Q-LED Core, Aluminum heatsi |
| Bios Information |
| BIOS Type |
128 Mb Flash ROM |
| BIOS Model |
UEFI AMI BIOS |
