| General | |
| Brand | ASUS |

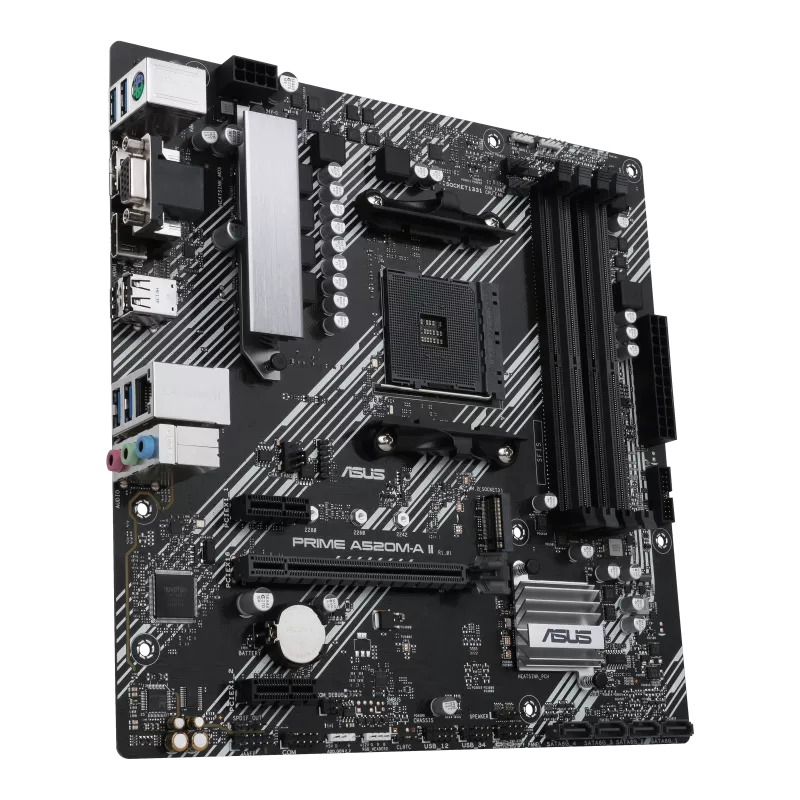

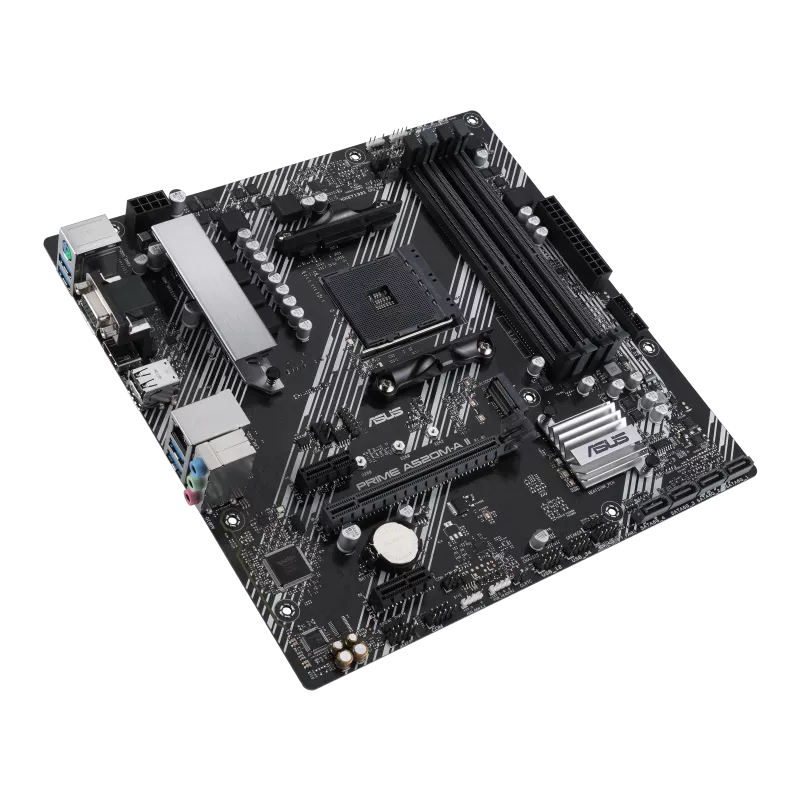

| Model | Asus PRIME A520M-A II |
| CPU | |
| Chipset Brand | AMD |
| Chipset | AMD A520 |
| Sockets Supported | AM4 |
| Built-in Processor | No |
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Memory & Storage Support | |
| Memory Type | DDR4 |
| Memory MHz | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/280 0/2666/2400/2133 MHz, Un-buffered Memory |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128 GB |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 1 |
| M.2/SSD Expansion Slot Details | 1 x M.2 (M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)) |
| M.2/SSD Slot Gen | Up to Gen 3 |
| Graphics | |
| Graphics Chipset | Integrated With Processor |
| PCI Express Slot | 1 x PCIe 3.0 x 16 (supports x16 mode), 2 x PCIe 3.0 x 1 |
| Ports | |
| USB Port | 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| VGA Port | No |
| DVI Port | No |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 4 x SATA |
| Thunderbolt | No |
| Network & Connectivity | |
| LAN Chipset | Realtek 1Gb Ethernet |
| LAN Speed (Mbps) | 10/100/1000Mbps |
| WiFi | No |
| Bluetooth | 182 |
| Audio | |
| Audio Chipset | Realtek ALC887/897 |
| Audio Channel | 7.1 |
| Software | |
| Supported Operating System | Windows 10 |
| Technical Info | |
| Cable Management | Front |
| Heatsink | No |
| RGB Support | RGB |
| RGB Sync | Aura RGB |
| RGB Connector | 2 x AURA RGB headers |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| Warranty Details | |
| Warranty | 3 Year |
| Warranty Condition | 3 Years Replacement Warranty |
| Additional Info | |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Feature | Special Features: ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O, AS US Q-Design: ASUS Q-DIMM, ASUS Q-Slot. |
| Bios Information | |
| BIOS Type | 128 Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
