| General | |
| Brand | ASUS |
| Model | Asus B760M-AYW (Wi-Fi 6) |
| CPU | |
| Chipset Brand | Intel |
| Chipset | Intel B760 |
| Sockets Supported | LGA1700 |
| Built-in Processor | No |
| Generation | 12th/13th/14th |
| Supported CPU | Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors |
| Memory & Storage Support | |
| Memory Type | DDR5 |
| Memory MHz | 8000(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400 / 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
| Memory Channel | Dual |
| Memory Slot | 2 |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| M.2/SSD Expansion Slot Details | 2 x M.2 (1 x M.2, type 2242/2260/2280 (supports PCIe 4.0 x4 mode), (1 x M.2, type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2/SSD Slot Gen | Up to Gen 4 |
| Graphics | |
| Graphics Chipset | Integrated With Processor |
| PCI Express Slot | 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots |
| Ports | |
| USB Port | 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A) |
| VGA Port | No |
| DVI Port | No |
| HDMI Port | 1 |
| DisplayPort (DP) | No |
| SATA Port | 4 |
| Thunderbolt | No |
| Network & Connectivity | |
| LAN Chipset | Realtek 2.5Gb Ethernet |
| LAN Speed (Mbps) | 100/ 1000/ 2500Mbps |
| WiFi | Yes |
| Audio | |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Channel | 7.1 |
| Software | |
| Supported Operating System | Windows 10, Windows 11 |
| Technical Info | |
| Back-Connect Design | No |
| Cable Management | Front |
| Heatsink | Yes |
| RGB Support | ARGB |
| RGB Sync | Aura Sync |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| Warranty Details | |
| Warranty | 3 Year |
| Warranty Condition | 3 Year Replacement |
| Additional Info | |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Feature | Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applica tions, Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel processors, Ultrafast Connectivity: PCIe 4.0, two PCIe |

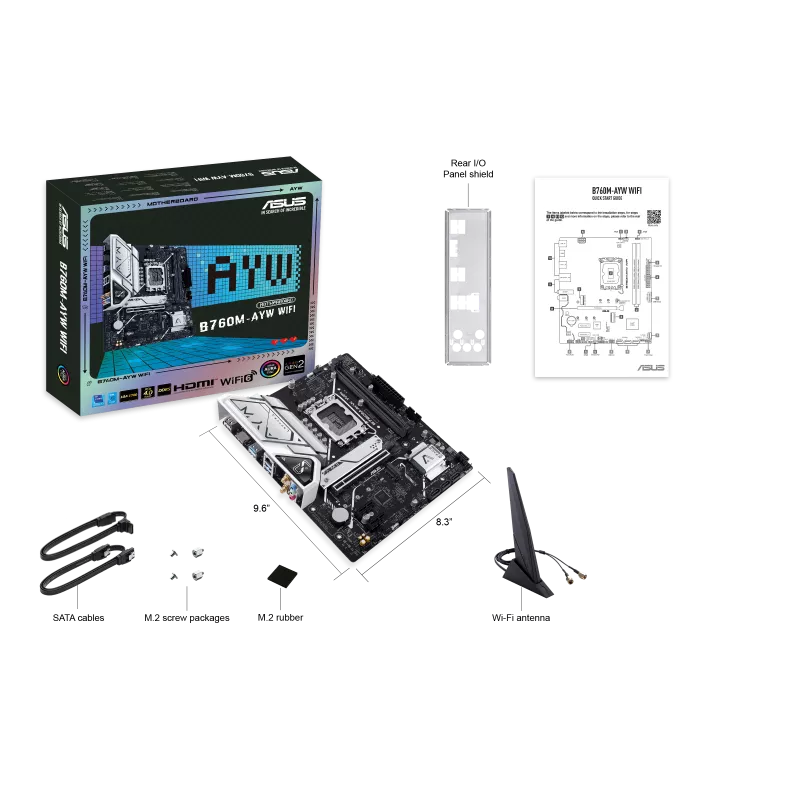

| Others Info | Manageability: WOL by PME, PXE, Accessories: Cables, 2 x SATA 6Gb/s cables, Miscellaneous: 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, Documentation: 1 x User guide, ASUS 5X PROTECTION III, ASUS Q |
| Bios Information | |
| BIOS Type | 128 Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
