| General |
| Brand |
ASUS |
| Model |

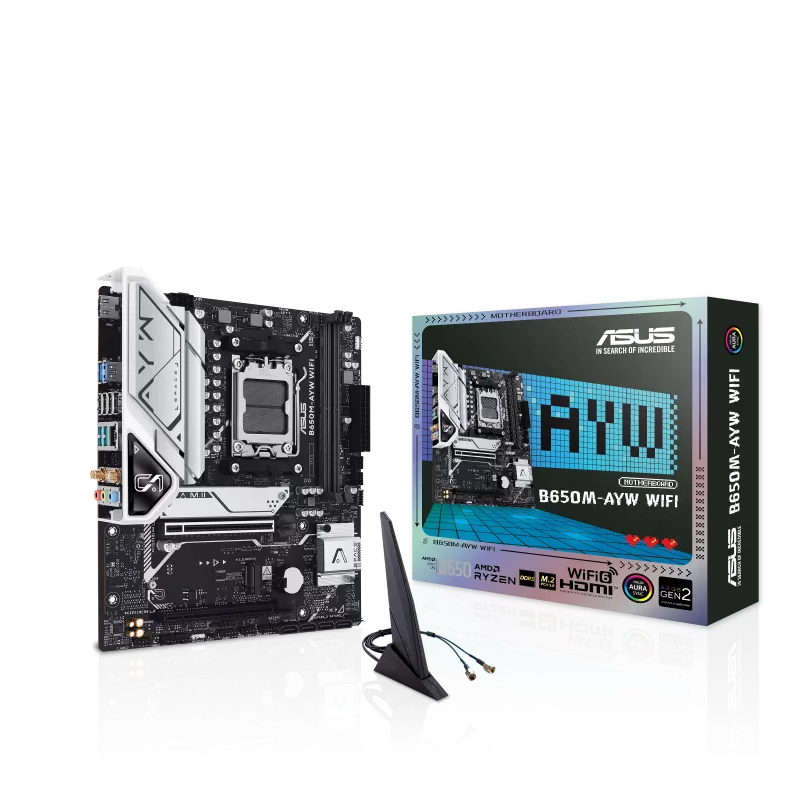

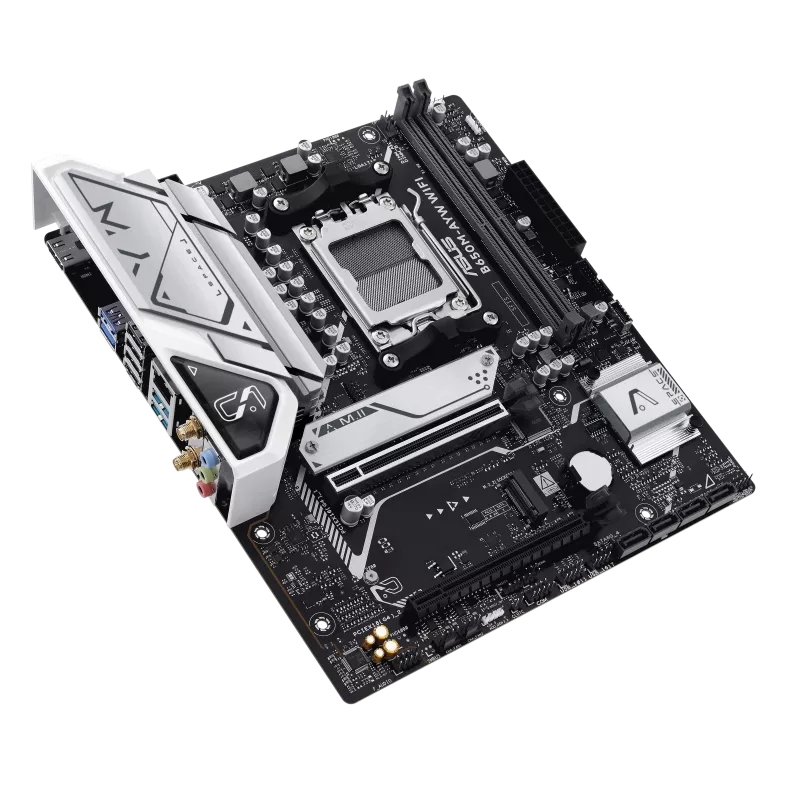

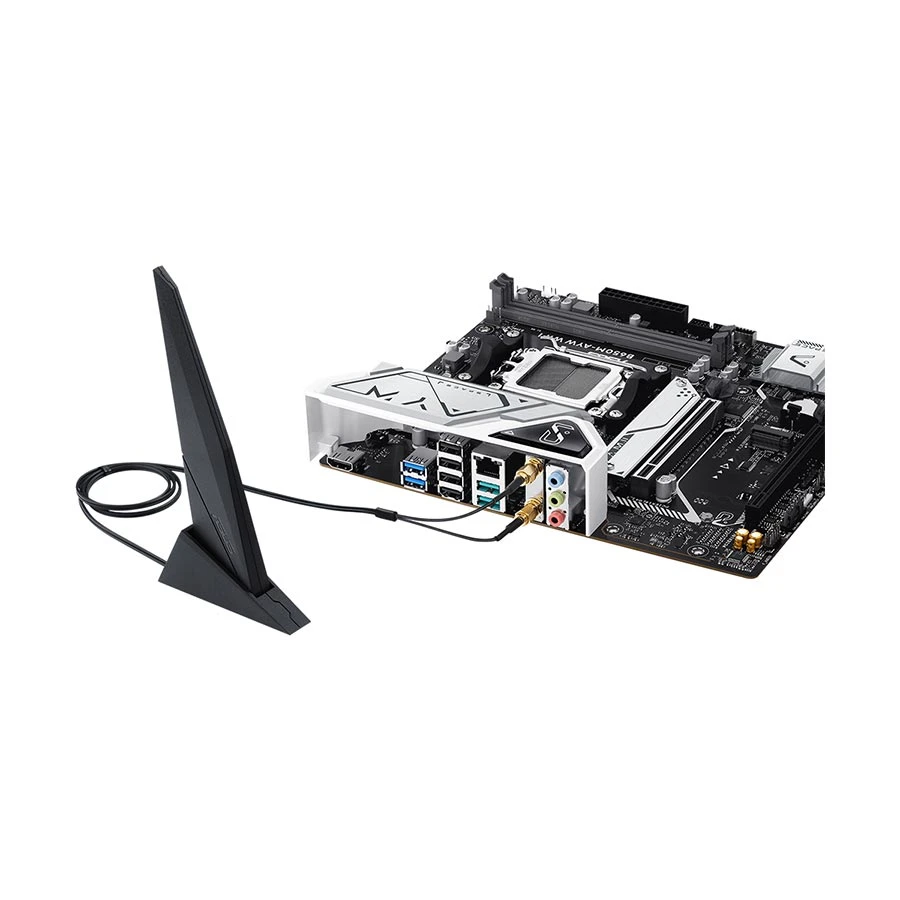

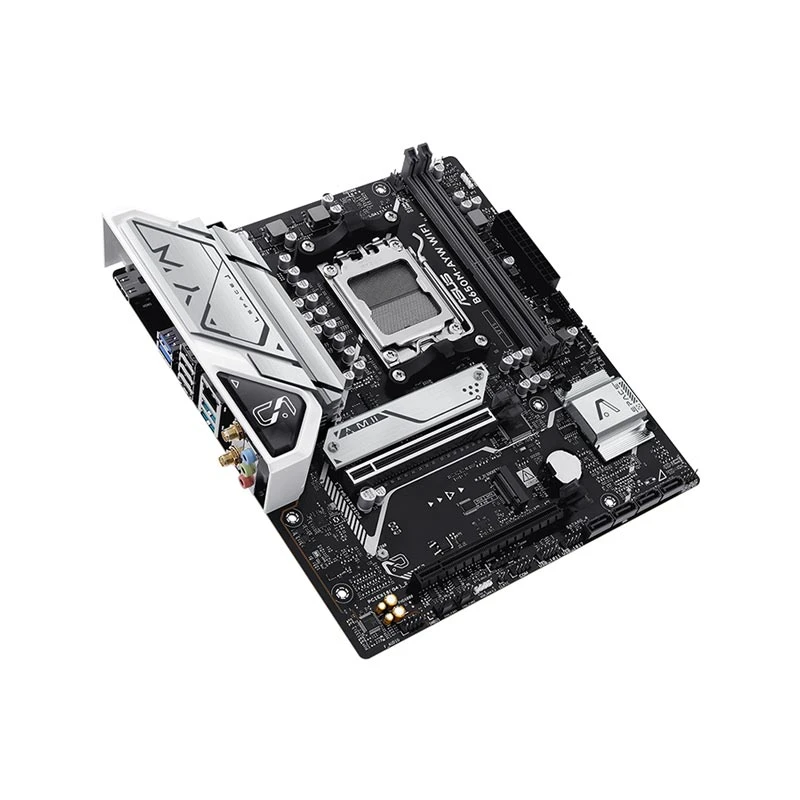

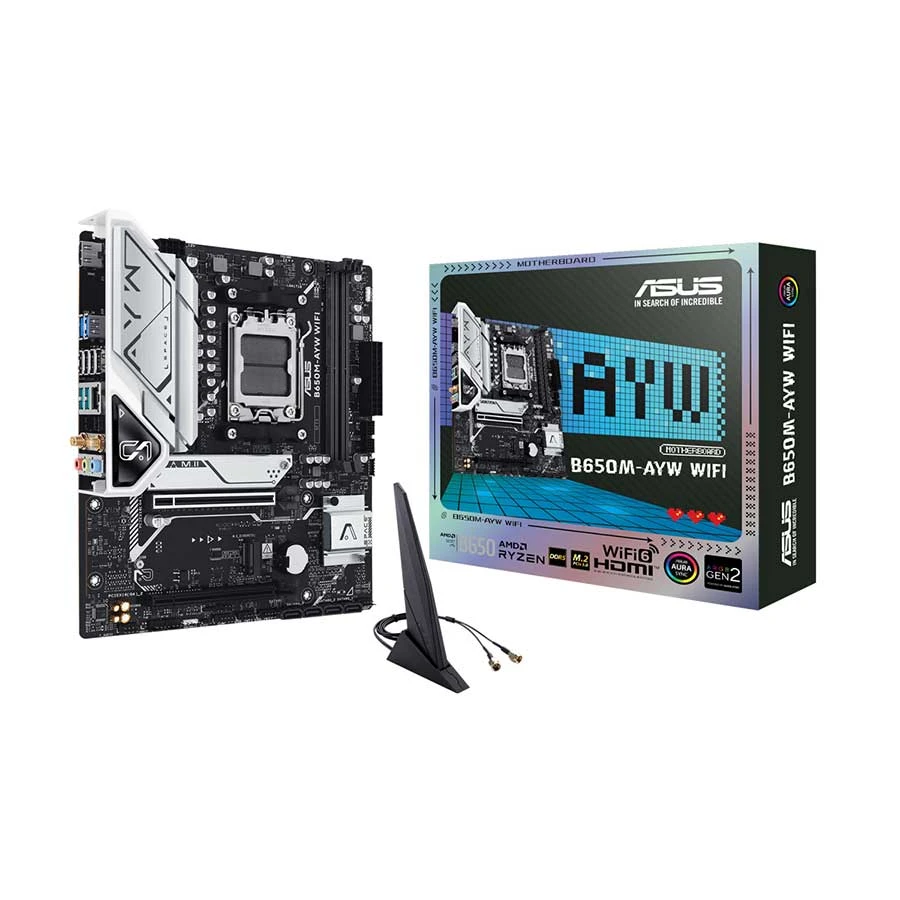

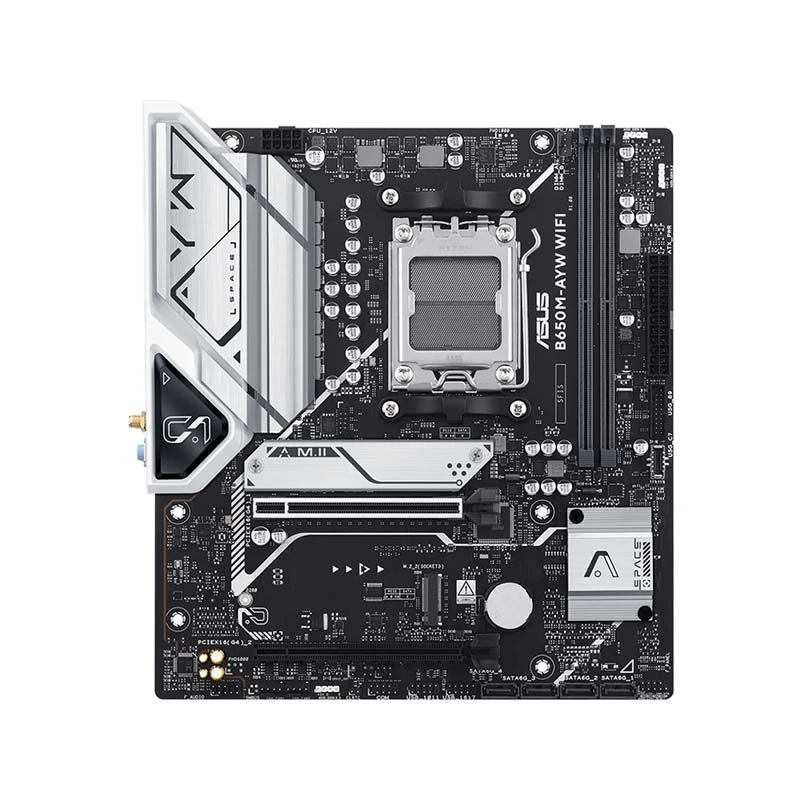

ASUS B650M-AYW (Wi-Fi 6) DDR5 AMD Motherboard |
| CPU |
| Chipset Brand |
AMD |
| Chipset |
AMD B650 |
| Sockets Supported |
AM4 |
| Built-in Processor |
No |
| Supported CPU |
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Proces
sors |
| Memory & Storage Support |
| Memory Type |
DDR4 |
| Memory MHz |
8000(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400
/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
| Memory Channel |
Dual |
| Memory Slot |
2 |
| Memory Max. |
96 GB |
| Storage Interface |
6.0Gb/s |
| M.2/SSD Expansion Slot |
2 |
| M.2/SSD Expansion Slot Details |
2 x M.2 (1 x M.2, type 2280 (supports PCIe 5.0 x4 mode)), (1 x M.2, type 2280 (supports PCIe 4.0 x4 mode)) |
| M.2/SSD Slot Gen |
Up to Gen 5 |
| Graphics |
| Graphics Chipset |
Integrated |
| PCI Express Slot |
1 x PCIe 4.0 x16 slot (supports x8/x4 mode), 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Multi-GPU Support |
No |
| Ports |
| USB Port |

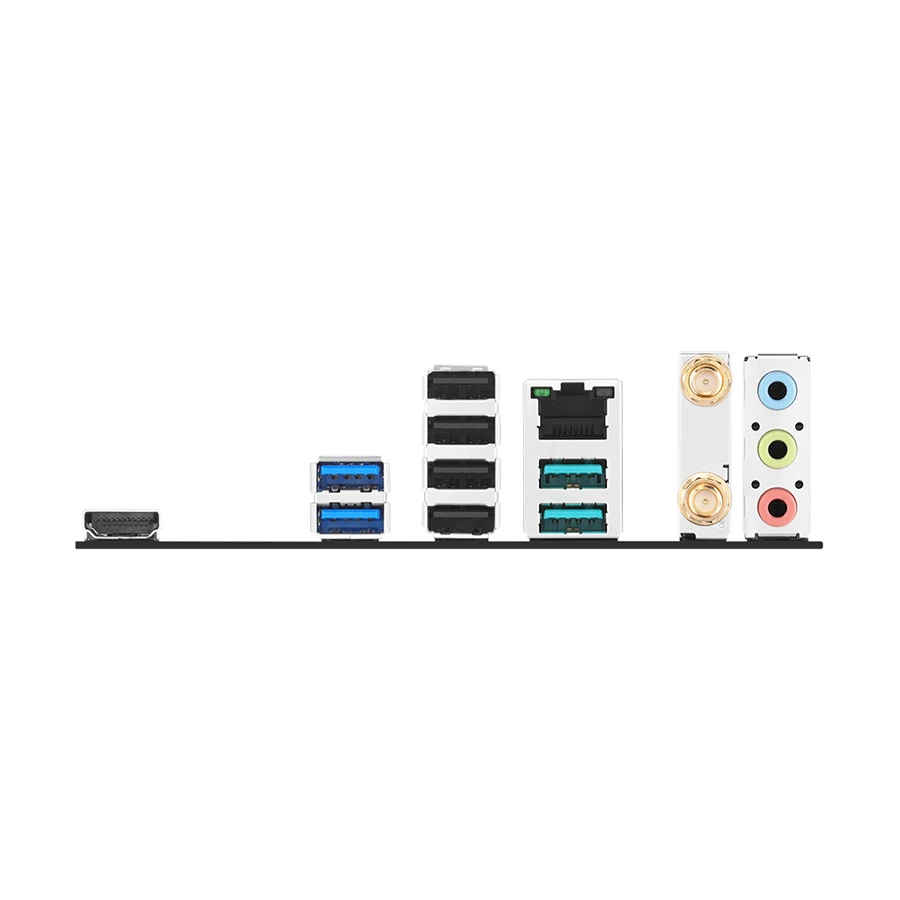

2 x USB 10Gbps ports (2 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |
| VGA Port |
No |
| DVI Port |
No |
| HDMI Port |
1 |
| DisplayPort (DP) |
No |
| SATA Port |
4 |
| Thunderbolt |
No |
| Network & Connectivity |
| LAN Chipset |
1 x Realtek 2.5Gb Ethernet |
| LAN Speed (Mbps) |
100/1000/2500 Mbps |
| WiFi |
Yes |
| Bluetooth |
181 |
| WiFi Technology |
Wi-Fi 6 |
| Audio |
| Audio Chipset |
Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Channel |
7.1 |
| Software |
| Supported Operating System |
WindowsWindows 10, Windows 11 10, Windows 11 |
| Technical Info |
| Back-Connect Design |
No |
| Cable Management |
Front |
| Heatsink |
Yes |
| RGB Support |
No |
| Approx. Power Consumption |
60W |
| Form Factor |
Micro-ATX |
| Warranty Details |
| Warranty |
3 Year |
| Additional Info |
| Country Of Origin |
Taiwan |
| Made in/ Assemble |
China |
| Feature |
Special Features: ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, Safeslot Core+, Stainless-Steel Back I/O, A
SUS Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED Core, Q-Slot, ASUS Thermal Solution: M.2 heatsink, VRM heatsink design, Aura Sync: A |
| Bios Information |
| BIOS Type |
256 Mb Flash ROM |
| BIOS Model |
UEFI AMI BIOS |
