| General |
| Brand |
AMD |
| Series |
7000 |
| Model |

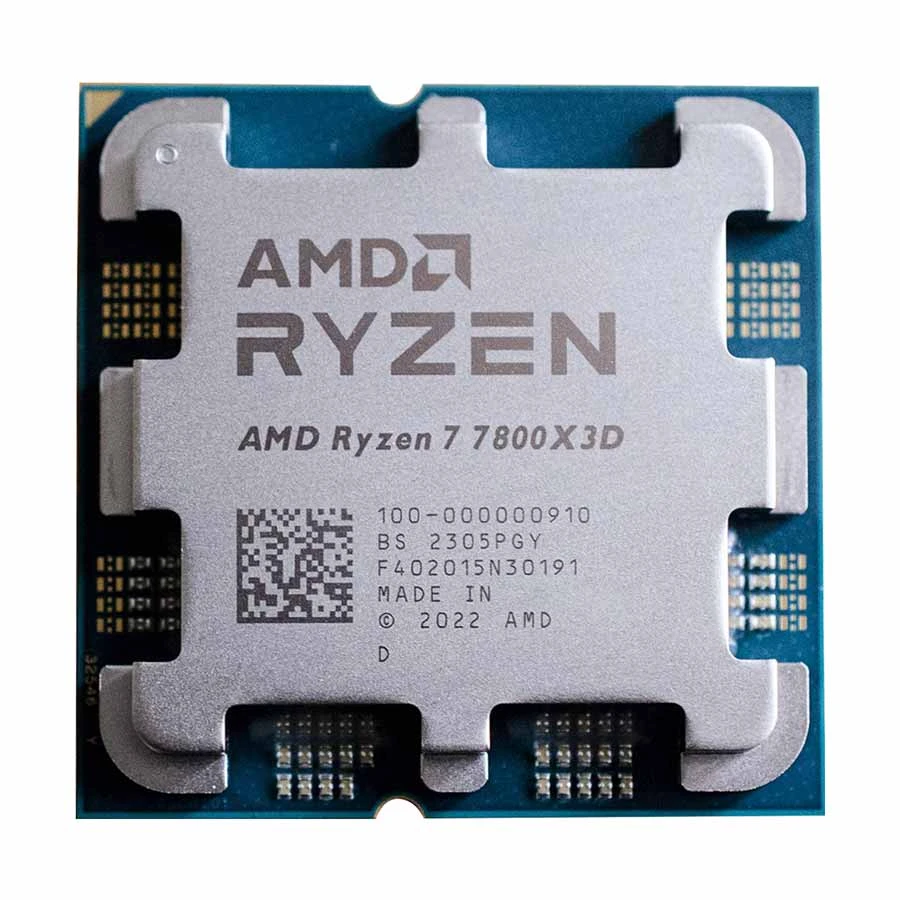

AMD Ryzen 7 7800X3D |
| CPU Cooler |
Included |
| Code-Name |
Zen 4 |
| Generation |
Not Applicable |
| Sockets Supported |
AM5 |
| Performance & Memory Support |
| Processor Type |
Ryzen 7 |
| Base Frequency |
4.20GHz |
| Turbo Frequency Max |
5.00GHz |
| Core |
8 |
| Threads |
16 |
| CPU Cache |
104MB |
| Bus Speed |
DDR5 3600MHz (4x1R, 4x2R), DDR5 5200MHz (2x1R, 2x2R) |
| TDP |
120W |
| L2 Cache |
8MB |
| L3 Cache |
96MB |
| Memory Max |
128GB |
| Memory Type |
2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600 |
| Memory Channel |
2 |
| ECC Memory Supported |
Yes |
| Graphics |
| Built-in GPU |
Yes |
| Processor Graphics |
AMD Radeon Graphics |
| Graphics Base Frequency |
2200MHz |
| Technical Info |
| Approx. Power Consumption |
120W |
| Compatible Products |
Chipsets: X670E, X670, B650E, B650 |
| Warranty Details |
| Warranty |
3 Year |
| Warranty Condition |
3 Year (No Warranty for Fan or Cooler) |
| Additional Info |
| Country Of Origin |
USA |
| Made in/ Assemble |
China |
| Others Info |
CPU Compute Die (CCD) Size: 71mm2, I/O Die (IOD) Size: 122mm2, Package Die Count: 2, Max. Operating Temperature (Tjmax): 89 Degree
C, OS Support: Windows 11, 10, RHEL, Ubuntu. |
| Specialty |
AMD EXPO Memory Overclocking Technology, Precision Boost Overdrive, Curve Optimizer Voltage Offsets, AMD Ryzen Master Support, CPU
Boost Technology: Precision Boost 2. |
